Brass gland, MDW...HML type

Brass gland, MDW...HML type

Main data of the product series

Product name
Brass gland, MDW...HML type
Category
Metal
Material
body: nickel-plated brass; sealing ring: neoprene; clamping insert: PA 6; o-ring: NBR
Operating temperature [°C]
-40 ÷ +100
IP degree of protection
IP68

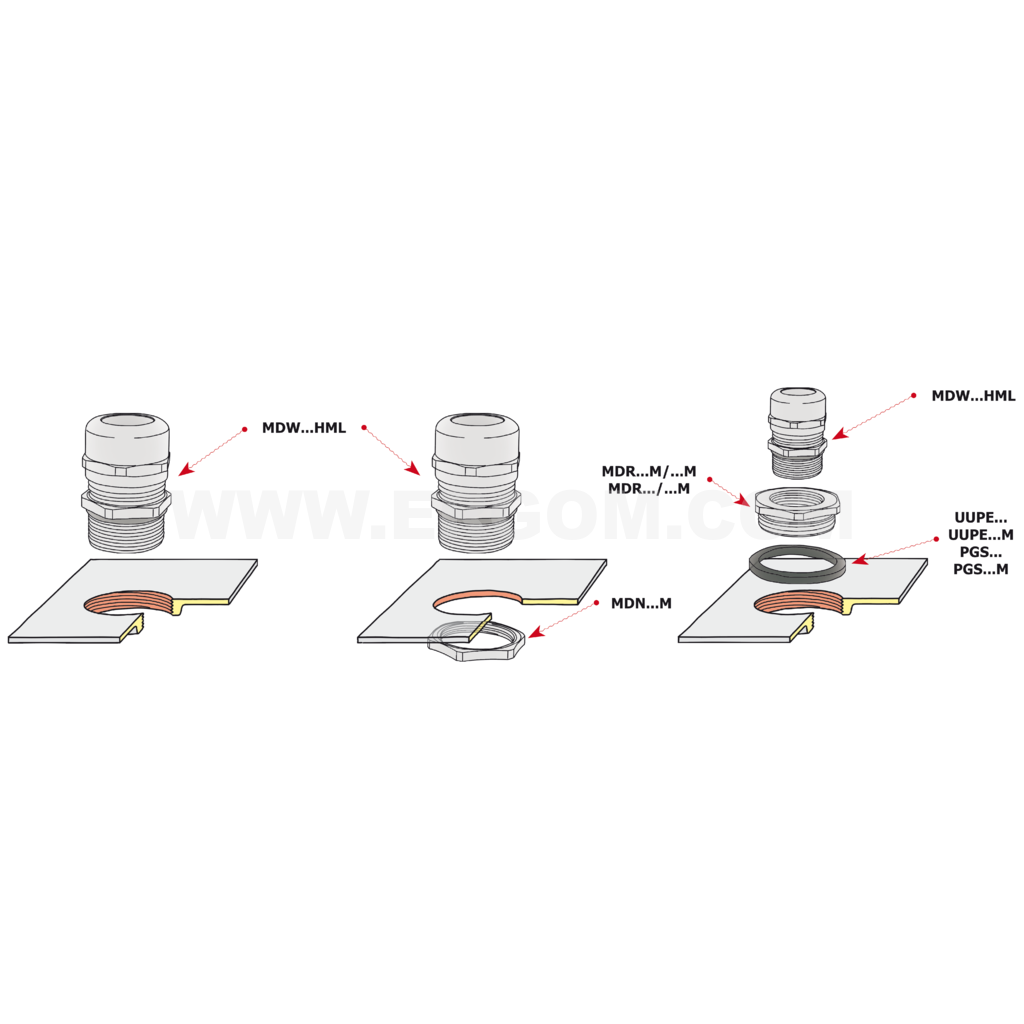

Note!
MDN Nuts are to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDW 12HML E03DK-03080200103 10 10 pcs. Price on request
MDW 16HML E03DK-03080200203 10 10 pcs. Price on request
MDW 20HML E03DK-03080200303 10 10 pcs. Price on request
MDW 25HML E03DK-03080200403 10 10 pcs. Price on request
MDW 32HML E03DK-03080200503 10 10 pcs. Price on request
MDW 40HML E03DK-03080200603 10 10 pcs. Price on request
MDW 50HML E03DK-03080200703 1 1 pcs. Price on request
MDW 63HML E03DK-03080200803 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: nickel-plated brass; sealing ring: neoprene; clamping insert: PA 6; o-ring: NBR
Operating temperature [°C] -40 ÷ +100
Stopień ochrony IP68
Normy EN 62444; type A
Name M thread Cable external diameter [mm] E L For spanner A For spanner B
MDW 12HML M12x1,5 3÷6,5 12 20 14 14
MDW 16HML M16x1,5 4÷8 12 21 17 18
MDW 20HML M20x1,5 6÷12 12 22 22 22
MDW 25HML M25x1,5 10÷14 12 24 24 27
MDW 32HML M32x1,5 13÷18 15 28 30 34
MDW 40HML M40x1,5 18÷25 15 32 40 43
MDW 50HML M50x1,5 22÷32 15 46 50 55
MDW 63HML M63x1,5 34÷44 18 44 64 68

Guide

Brass gland, MDW...HML type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_mosiezna_MDW_HML_EN.pdf EN 14-05-2025 248.37 KB PDF Download
Catalog card ERGOM_Dlawnica_mosiezna_MDW_HML_PL.pdf PL 14-05-2025 288.11 KB PDF Download
