Brass gland, MDW...HM type

Brass gland, MDW...HM type

Main data of the product series

Product name: Brass gland, MDW...HM type
Category: Metal
Material: body: nickel-plated brass; sealing ring: neoprene; clamping insert: PA 6; o-ring: NBR
Operating temperature [°C]: -40 ÷ +100
IP degree of protection: IP68

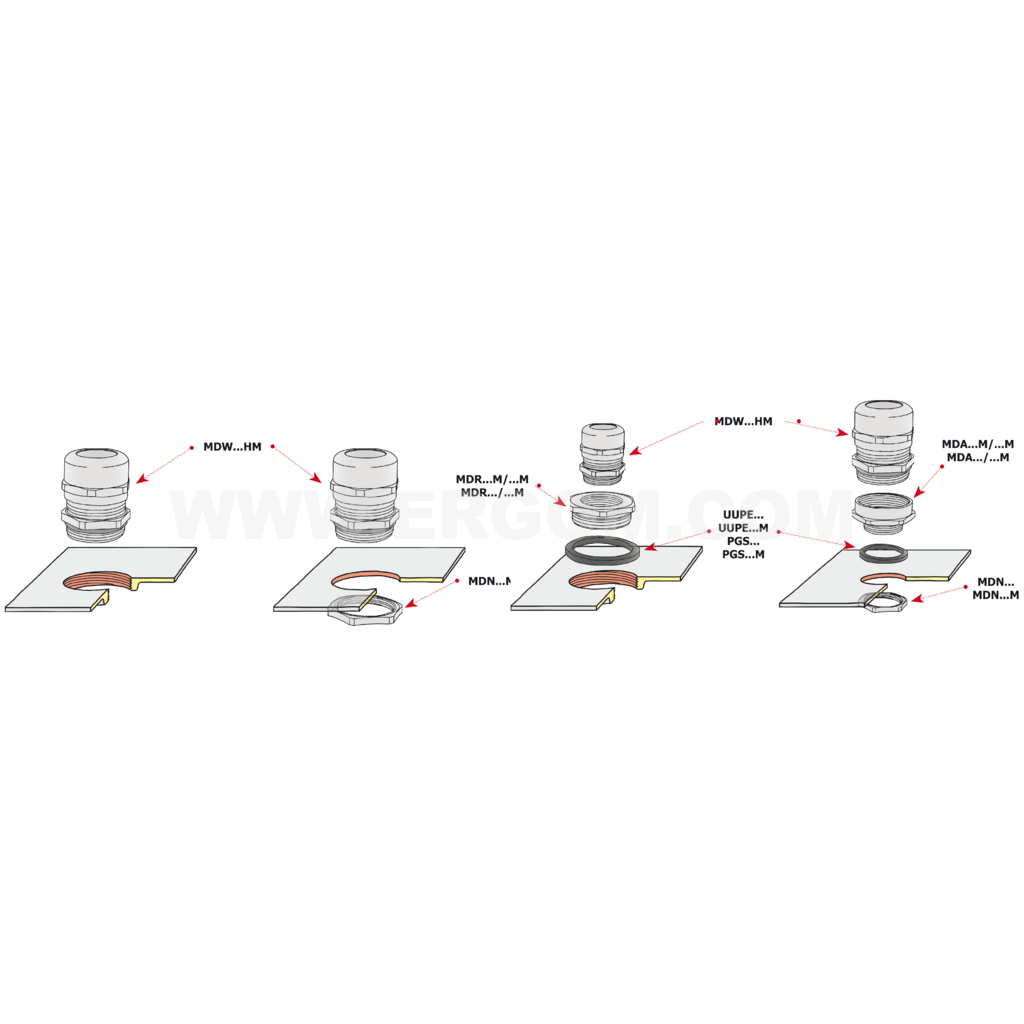

Note!: MDN Nuts are to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MDW 12HM	E03DK-03070200101	50	50	pcs.	Price on request
MDW 12HM	E03DK-03070200103	10	10	pcs.	Price on request
MDW 16HM	E03DK-03070200201	50	50	pcs.	Price on request
MDW 16HM	E03DK-03070200203	10	10	pcs.	Price on request
MDW 20HM	E03DK-03070200301	50	50	pcs.	Price on request
MDW 20HM	E03DK-03070200303	10	10	pcs.	Price on request
MDW 25HM	E03DK-03070200401	25	25	pcs.	Price on request
MDW 25HM	E03DK-03070200403	10	10	pcs.	Price on request
MDW 32HM	E03DK-03070200501	25	25	pcs.	Price on request
MDW 32HM	E03DK-03070200503	10	10	pcs.	Price on request
MDW 40HM	E03DK-03070200601	5	5	pcs.	Price on request
MDW 50HM	E03DK-03070200701	5	5	pcs.	Price on request
MDW 50HM	E03DK-03070200703	1	1	pcs.	Price on request
MDW 63HM	E03DK-03070200801	5	5	pcs.	Price on request
MDW 63HM	E03DK-03070200803	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	body: nickel-plated brass; sealing ring: neoprene; clamping insert: PA 6; o-ring: NBR
Operating temperature [°C]	-40 ÷ +100
Stopień ochrony	IP68
Normy	EN 62444; type A

Name	M thread	Cable external diameter [mm]	E	L	For spanner A	For spanner B
MDW 12HM	M12x1,5	3÷6,5	6	20	14	14
MDW 16HM	M16x1,5	4÷8	7	22	17	18
MDW 20HM	M20x1,5	6÷12	8	24	22	22
MDW 25HM	M25x1,5	10÷14	8	27	24	27
MDW 32HM	M32x1,5	13÷18	9	31	30	34
MDW 40HM	M40x1,5	18÷25	9	36	40	43
MDW 50HM	M50x1,5	22÷32	9	47	50	55
MDW 63HM	M63x1,5	34÷44	14	51	64	68

Guide

Brass gland, MDW...HM type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Dlawnica_mosiezna_MDW_HM_EN.pdf	EN	14-05-2025	270.45 KB	PDF	Download
Catalog card	ERGOM_Dlawnica_mosiezna_MDW_HM_PL.pdf	PL	14-05-2025	310.73 KB	PDF	Download
