Brass gland, MDW...HL type

Brass gland, MDW...HL type

Main data of the product series

Product name
Brass gland, MDW...HL type
Category
Metal
Operating temperature [°C]
-40 ÷ +100
Material
body: nickel-plated brass; sealing ring: neoprene; clamping insert: PA 6; o-ring: NBR
IP degree of protection
IP68
Note!

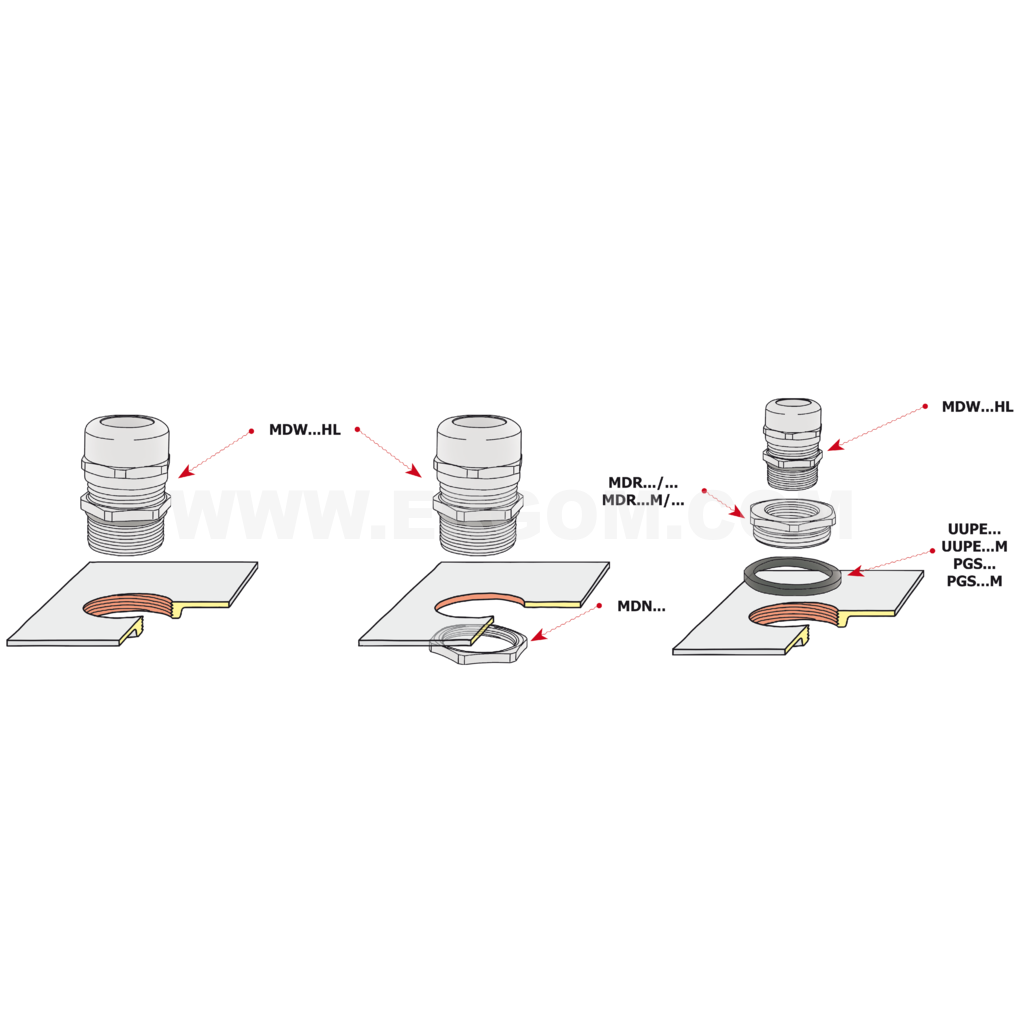

MDN Nuts are to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDW 7HL E03DK-03080100103 10 10 pcs. Price on request
MDW 9HL E03DK-03080100203 10 10 pcs. Price on request
MDW 11HL E03DK-03080100303 10 10 pcs. Price on request
MDW 13HL E03DK-03080100403 10 10 pcs. Price on request
MDW 16HL E03DK-03080100503 10 10 pcs. Price on request
MDW 21HL E03DK-03080100603 10 10 pcs. Price on request
MDW 29HL E03DK-03080100703 10 10 pcs. Price on request
MDW 36HL E03DK-03080100803 10 10 pcs. Price on request
MDW 42HL E03DK-03080100903 1 1 pcs. Price on request
MDW 48HL E03DK-03080101003 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: nickel-plated brass; sealing ring: neoprene; clamping insert: PA 6; o-ring: NBR
Operating temperature [°C] -40 ÷ +100
Stopień ochrony IP68
Normy EN 62444; type A
Name PG thread Cable external diameter [mm] E L For spanner A For spanner B
MDW 7HL PG7 3,0÷6,5 10 20 14 14
MDW 9HL PG9 4,0÷8,0 10 21 17 17
MDW 11HL PG11 5,0÷10,0 10 22 20 20
MDW 13HL PG13,5 6,0÷12,0 10 22 22 22
MDW 16HL PG16 10,0÷14,0 10 24 24 24
MDW 21HL PG21 13,0÷18,0 12 28 30 30
MDW 29HL PG29 18,0÷25,0 12 32 40 40
MDW 36HL PG36 22,0÷32,0 15 38 50 50
MDW 42HL PG42 30,0÷38,0 15 42 58 58
MDW 48HL PG48 34,0÷44,0 18 44 64 64

Guide

Brass gland, MDW...HL type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_mosiezna_MDW_HL_EN.pdf EN 14-05-2025 250.83 KB PDF Download
Catalog card ERGOM_Dlawnica_mosiezna_MDW_HL_PL.pdf PL 14-05-2025 289.67 KB PDF Download
