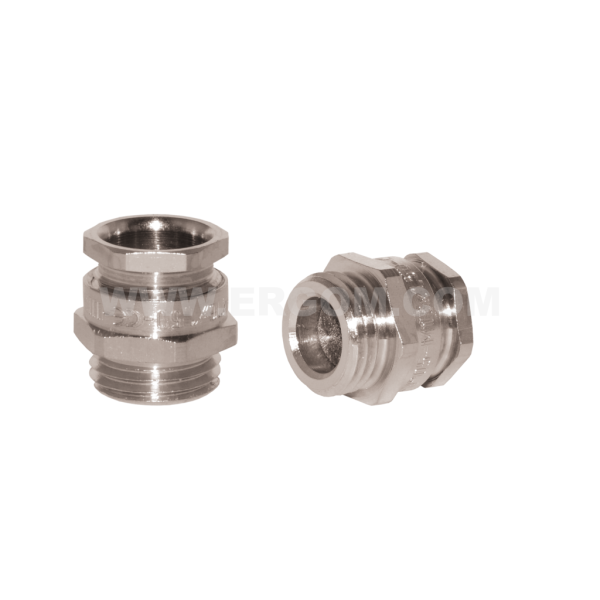

Brass gland, MDW-C...M type

Brass gland, MDW-C...M type

Main data of the product series

Product name: Brass gland, MDW-C...M type
Category: Metal
Operating temperature [°C]: -5 ÷ +70
Material: body: nickel plated brass; gasket: plasticized PVC
IP degree of protection: IP54 (z podkładką uszczelniającą)
Note!: MDN Nuts and UUPE seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MDW-C 25M	E03DK-03010202401	25	25	pcs.	Price on request
MDW-C 40M	E03DK-03010202601	5	5	pcs.	Price on request
MDW-C 63M	E03DK-03010202801	5	5	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	body: nickel plated brass; gasket: plasticized PVC
Assembly temperature [°C]	from 0
Operating temperature [°C]	-5 ÷ +70
Stopień ochrony	IP54 (z podkładką uszczelniającą)

Name	M thread	Cable external diameter [mm]	E	L	For spanner A	For spanner B
MDW-C 25M	M25x1,5	13÷19	7	15,5	26	30
MDW-C 40M	M40x1,5	23÷32	8	19	47	50
MDW-C 63M	M63x1,5	31÷42,5	10	20	60	64

Guide

Brass gland, MDW-C...M type

Brass gland, MDW-C...M type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Dlawnica_mosiezna_standard_typu_MDW-C_M_EN.pdf	EN	22-05-2025	270.26 KB	PDF	Download
Catalog card	ERGOM_Dlawnica_mosiezna_standard_typu_MDW-C_M_PL.pdf	PL	22-05-2025	287.1 KB	PDF	Download
