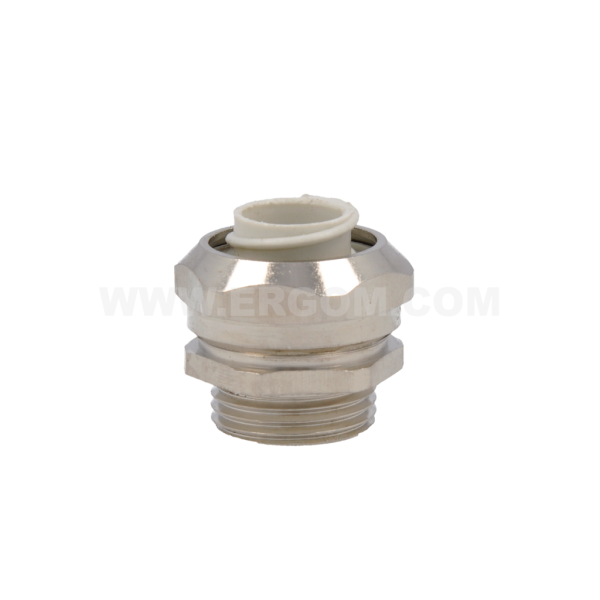

Brass fitting, MWO, MWO...M type

Brass fitting, MWO, MWO...M type

Main data of the product series

Product name
Brass fitting, MWO, MWO...M type
Category
Accessories for steel conduits
Material
nickel-plated brass + polypropylene insert
Operating temperature [°C]
-30 ÷ +80
IP degree of protection
IP66
Note!
MDN, MDN...M nuts and UUPE, UUPE ..M gland seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MWO 7 E03DK-08010100101 50 50 pcs. Price on request
MWO 7 E03DK-08010100103 10 10 pcs. Price on request
MWO 9 E03DK-08010100201 50 50 pcs. Price on request
MWO 9 E03DK-08010100203 10 10 pcs. Price on request
MWO 11 E03DK-08010100301 50 50 pcs. Price on request
MWO 11 E03DK-08010100303 10 10 pcs. Price on request
MWO 13 E03DK-08010100401 50 50 pcs. Price on request
MWO 13 E03DK-08010100403 10 10 pcs. Price on request
MWO 16 E03DK-08010100501 50 50 pcs. Price on request
MWO 16 E03DK-08010100503 10 10 pcs. Price on request
MWO 21 E03DK-08010100601 25 25 pcs. Price on request
MWO 21 E03DK-08010100603 10 10 pcs. Price on request
MWO 29 E03DK-08010100701 25 25 pcs. Price on request
MWO 29 E03DK-08010100703 10 10 pcs. Price on request
MWO 36 E03DK-08010100801 10 10 pcs. Price on request
MWO 36 E03DK-08010100803 1 1 pcs. Price on request
MWO 48 E03DK-08010100903 1 1 pcs. Price on request
MWO 12M/7 E03DK-08010200101 50 50 pcs. Price on request
MWO 12M/7 E03DK-08010200103 10 10 pcs. Price on request
MWO 16M/9 E03DK-08010200201 50 50 pcs. Price on request
MWO 16M/9 E03DK-08010200203 10 10 pcs. Price on request
MWO 20M/11 E03DK-08010200301 50 50 pcs. Price on request
MWO 20M/11 E03DK-08010200303 10 10 pcs. Price on request
MWO 20M/13 E03DK-08010200401 50 50 pcs. Price on request
MWO 20M/13 E03DK-08010200403 10 10 pcs. Price on request
MWO 25M/16 E03DK-08010200501 25 25 pcs. Price on request
MWO 25M/16 E03DK-08010200503 10 10 pcs. Price on request
MWO 25M/21 E03DK-08010200601 25 25 pcs. Price on request
MWO 25M/21 E03DK-08010200603 10 10 pcs. Price on request
MWO 32M/21 E03DK-08010200701 25 25 pcs. Price on request
MWO 32M/21 E03DK-08010200703 10 10 pcs. Price on request
MWO 32M/29 E03DK-08010200801 25 25 pcs. Price on request
MWO 32M/29 E03DK-08010200803 10 10 pcs. Price on request
MWO 40M/29 E03DK-08010200901 10 10 pcs. Price on request
MWO 40M/29 E03DK-08010200903 10 1 pcs. Price on request
MWO 40M/36 E03DK-08010201001 10 10 pcs. Price on request
MWO 40M/36 E03DK-08010201003 1 1 pcs. Price on request
MWO 50M/36 E03DK-08010201101 10 10 pcs. Price on request
MWO 50M/36 E03DK-08010201103 1 1 pcs. Price on request
MWO 63M/48 E03DK-08010201201 10 10 pcs. Price on request
MWO 63M/48 E03DK-08010201203 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material nickel-plated brass + polypropylene insert
Halogen-free yes
Operating temperature [°C] -30 ÷ +80
Stopień ochrony IP66
Name M thread PG thread Tube type For spanner A For spanner B L C E
MWO 7 - PG7 WO 7, WO 7 S, WOT 7 19 17 10,00 7,5 6,0
MWO 9 - PG9 WO 9, WO 9 S, WOT 9 22 20 12,50 9,2 6,0
MWO 11 - PG11 WO 11, WO 11 S, WOT 11 26 24 15,70 11,9 7,0
MWO 13 - PG13,5 WO 13, WO 13 S, WOT 13 28 26 13,00 13,6 7,0
MWO 16 - PG16 WO 16, WO 16 S, WOT 16 30 28 14,00 15,3 8,0
MWO 21 - PG21 WO 21, WO 21 S, WOT 21 36 34 20,00 20,2 8,0
MWO 29 - PG29 WO 29, WO 29 S, WOT 29 47 45 24,00 26,7 10,0
MWO 36 - PG36 WO 36, WO 36 S, WOT 36 60 56 26,50 34,6 11,0
MWO 48 - PG48 WO 48, WO 48 S, WOT 48 74 70 33,00 45,3 15,0
MWO 12M/7 M12x1,5 - WO 7, WO 7 S, WOT 7 19 17 10,20 7,5 6,0
MWO 16M/9 M16x1,5 - WO 9, WO 9 S, WOT 9 22 20 12,50 9,2 6,0
MWO 20M/11 M20x1,5 - WO 11, WO 11 S, WOT 11 26 24 13,00 11,9 7,0
MWO 20M/13 M20x1,5 - WO 13, WO 13 S, WOT 13 28 26 15,70 13,6 7,0
MWO 25M/16 M25x1,5 - WO 16, WO 16 S, WOT 16 30 28 14,00 15,3 8,0
MWO 25M/21 M25x1,5 - WO 21, WO 21 S, WOT 21 36 34 20,48 20,2 8,0
MWO 32M/21 M32x1,5 - WO 21, WO 21 S, WOT 21 36 36 16,50 20,2 8,0
MWO 32M/29 M32x1,5 - WO 29, WO 29 S, WOT 29 47 45 22,90 26,7 8,0
MWO 40M/29 M40x1,5 - WO 29, WO 29 S, WOT 29 47 45 19,50 26,7 10,0
MWO 40M/36 M40x1,5 - WO 36, WO 36 S, WOT 36 60 56 30,00 34,6 10,0
MWO 40M/36 M40x1,5 - WO 36, WO 36 S, WOT 36 60 56 26,00 34,6 8,5
MWO 50M/36 M50x1,5 - WO 36, WO 36 S, WOT 36 60 58 26,00 34,6 11,0
MWO 63M/48 M63x1,5 - WO 48, WO 48 S, WOT 48 74 70 32,50 45,3 15,0

Guide

Brass fitting, MWO, MWO...M type
Brass fitting, MWO, MWO...M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_rury_mosiezny_typu_MWO_MWO_M_EN.pdf EN 14-05-2025 282.75 KB PDF Download
Catalog card ERGOM_Lacznik_rury_mosiezny_typu_MWO_MWO_M_PL.pdf PL 14-05-2025 306.8 KB PDF Download
