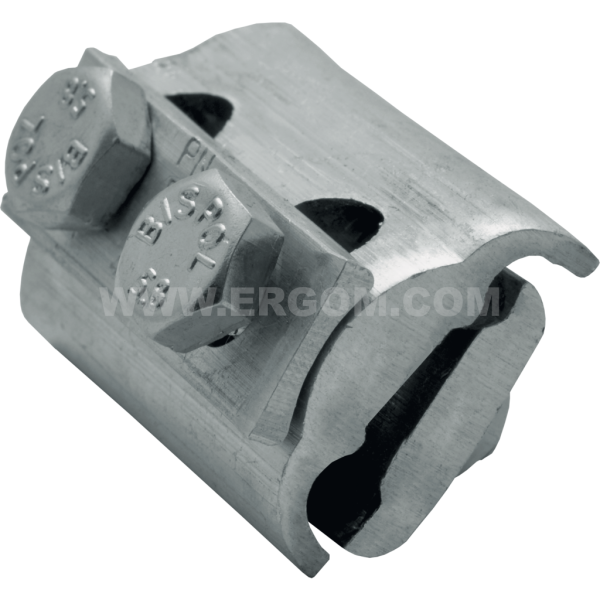

Branch clamps for uninsulated overhead power lines, ZLN.../2A type

Branch clamps for uninsulated overhead power lines, ZLN.../2A type

Main data of the product series

Product name
Branch clamps for uninsulated overhead power lines, ZLN.../2A type
Category
Branched
Material
Body – Aluminium (PA-38 alloy); Screws – Galvanized steel; Nuts – Galvanized steel

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZLN 425/2A E14KI-04010100101 12 1 pcs. Price on request
ZLN 635/2A E14KI-04010100201 12 1 pcs. Price on request
ZLN 1050/2A E14KI-04010100301 12 1 pcs. Price on request
ZLN 1695/2A E14KI-04010100401 12 1 pcs. Price on request
ZLN 16150/2A E14KI-04010100501 12 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Body – Aluminium (PA-38 alloy); Screws – Galvanized steel; Nuts – Galvanized steel
Number of screws [pcs] 2
Name L E H W Cross-section, rm/sm [mm²] Screw
ZLN 425/2A 39 20 30 27 4÷25 M6x25
ZLN 635/2A 41 21 36 31 6÷35 M8x30
ZLN 1050/2A 46 24 36 35 10÷50 M8x30
ZLN 1695/2A 53 28 47 47 16÷95 M10x40
ZLN 16150/2A 60 31 57 54 16÷150 M10x50

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zaciski_odgalezne_do_linii_napowietrz_nieizolow_ZLN_2A_EN.pdf EN 04-07-2025 342.94 KB PDF Download
Catalog card ERGOM_Zaciski_odgalezne_do_linii_napowietrz_nieizolow_ZLN_2A_PL.pdf PL 04-07-2025 388.44 KB PDF Download
