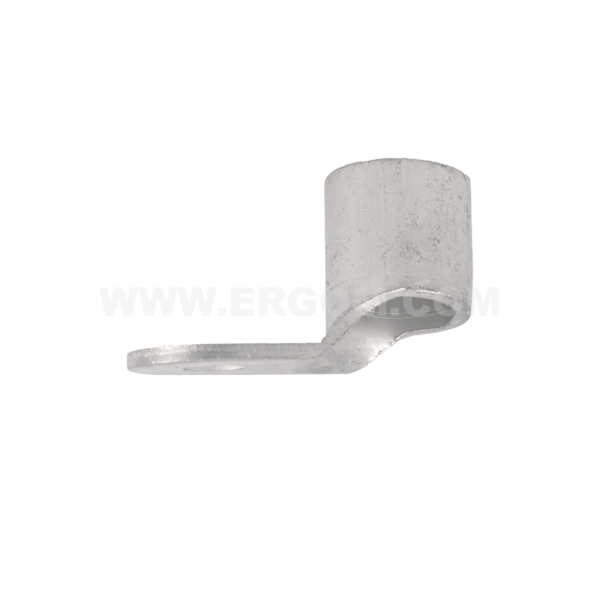

Angle ring terminals, K90O type

Angle ring terminals, K90O type

Main data of the product series

Product name
Angle ring terminals, K90O type
Category
Uninsulated ring, fork and pin terminals
Surface
tin-plated

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
K90O 1/2,5 E09KO-01060100700 1 100 pkt. Price on request
K90O 1/3 E09KO-01060100800 1 100 pkt. Price on request
K90O 1/3,5 E09KO-01060100900 1 100 pkt. Price on request
K90O 1/4 E09KO-01060101000 1 100 pkt. Price on request
K90O 1/5 E09KO-01060101100 1 100 pkt. Price on request
K90O 1/6 E09KO-01060101200 1 100 pkt. Price on request
K90O 1/8 E09KO-01060101300 1 100 pkt. Price on request
K90O 1/10 E09KO-01060101400 1 100 pkt. Price on request
K90O 2,5/3 E09KO-01060101500 1 100 pkt. Price on request
K90O 2,5/3,5 E09KO-01060101600 1 100 pkt. Price on request
K90O 2,5/4 E09KO-01060101700 1 100 pkt. Price on request
K90O 2,5/5 E09KO-01060101800 1 100 pkt. Price on request
K90O 2,5/6 E09KO-01060101900 1 100 pkt. Price on request
K90O 2,5/8 E09KO-01060102000 1 100 pkt. Price on request
K90O 2,5/10 E09KO-01060102100 1 100 pkt. Price on request
K90O 6/3,5 E09KO-01060102400 1 100 pkt. Price on request
K90O 6/4 E09KO-01060102500 1 100 pkt. Price on request
K90O 6/5 E09KO-01060102600 1 100 pkt. Price on request
K90O 6/6 E09KO-01060102700 1 100 pkt. Price on request
K90O 6/8 E09KO-01060102800 1 100 pkt. Price on request
K90O 6/10 E09KO-01060102900 1 100 pkt. Price on request
K90O 10/4 E09KO-01060103100 100 100 pcs. Price on request
K90O 10/5 E09KO-01060103200 100 100 pcs. Price on request
K90O 10/6 E09KO-01060103300 100 100 pcs. Price on request
K90O 10/8 E09KO-01060103400 100 100 pcs. Price on request
K90O 10/10 E09KO-01060103500 100 100 pcs. Price on request
K90O 16/5 E09KO-01060103700 100 100 pcs. Price on request
K90O 16/6 E09KO-01060103800 100 100 pcs. Price on request
K90O 16/8 E09KO-01060103900 100 100 pcs. Price on request
K90O 16/10 E09KO-01060104000 100 100 pcs. Price on request
K90O 25/5 E09KO-01060104200 100 100 pcs. Price on request
K90O 25/6 E09KO-01060104300 100 100 pcs. Price on request
K90O 25/8 E09KO-01060104400 100 100 pcs. Price on request
K90O 25/10 E09KO-01060104500 100 100 pcs. Price on request
K90O 35/6 E09KO-01060104800 100 100 pcs. Price on request
K90O 35/8 E09KO-01060104900 100 100 pcs. Price on request
K90O 35/10 E09KO-01060105000 100 100 pcs. Price on request
K90O 50/6 E09KO-01060105400 100 100 pcs. Price on request
K90O 50/8 E09KO-01060105500 100 100 pcs. Price on request
K90O 50/10 E09KO-01060105600 100 100 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie DIN 46234 - before palm bending
Name Screw hole d D s a W Cross-section [mm²]
K90O 1/2,5 M2,5 1,6 3,2 0,8 5 6 0,75÷1,0
K90O 1/3 M3 1,6 3,2 0,8 5 6 0,75÷1,0
K90O 1/3,5 M3,5 1,6 3,2 0,8 5 6 0,75÷1,0
K90O 1/4 M4 1,6 3,2 0,8 5 8 0,75÷1,0
K90O 1/5 M5 1,6 3,2 0,8 5 10 0,75÷1,0
K90O 1/6 M6 1,6 3,2 0,8 5 10 0,75÷1,0
K90O 1/8 M8 1,6 3,2 0,8 5 14 0,75÷1,0
K90O 1/10 M10 1,6 3,2 0,8 5 14 0,75÷1,0
K90O 2,5/3 M3 2,3 3,9 0,8 5 6 1,5÷2,5
K90O 2,5/3,5 M3,5 2,3 3,9 0,8 5 6 1,5÷2,5
K90O 2,5/4 M4 2,3 3,9 0,8 5 8 1,5÷2,5
K90O 2,5/5 M5 2,3 3,9 0,8 5 10 1,5÷2,5
K90O 2,5/6 M6 2,3 3,9 0,8 5 11 1,5÷2,5
K90O 2,5/8 M8 2,3 3,9 0,8 5 14 1,5÷2,5
K90O 2,5/10 M10 2,3 3,9 0,8 5 18 1,5÷2,5
K90O 6/3,5 M3,5 3,6 5,6 1,0 6 8 4,0÷6,0
K90O 6/4 M4 3,6 5,6 1,0 6 8 4,0÷6,0
K90O 6/5 M5 3,6 5,6 1,0 6 10 4,0÷6,0
K90O 6/6 M6 3,6 5,6 1,0 6 11 4,0÷6,0
K90O 6/8 M8 3,6 5,6 1,0 6 14 4,0÷6,0
K90O 6/10 M10 3,6 5,6 1,0 6 18 4,0÷6,0
K90O 10/4 M4 4,5 6,7 1,1 8 10 10
K90O 10/5 M5 4,5 6,7 1,1 8 10 10
K90O 10/6 M6 4,5 6,7 1,1 8 11 10
K90O 10/8 M8 4,5 6,7 1,1 8 14 10
K90O 10/10 M10 4,5 6,7 1,1 8 18 10
K90O 16/5 M5 5,8 8,2 1,2 10 11 16
K90O 16/6 M6 5,8 8,2 1,2 10 11 16
K90O 16/8 M8 5,8 8,2 1,2 10 14 16
K90O 16/10 M10 5,8 8,2 1,2 10 18 16
K90O 25/5 M5 7,5 10,5 1,5 11 12 25
K90O 25/6 M6 7,5 10,5 1,5 11 12 25
K90O 25/8 M8 7,5 10,5 1,5 11 16 25
K90O 25/10 M10 7,5 10,5 1,5 11 18 25
K90O 35/6 M6 9,0 12,2 1,6 12 15 35
K90O 35/8 M8 9,0 12,2 1,6 12 16 35
K90O 35/10 M10 9,0 12,2 1,6 12 18 35
K90O 50/6 M6 11,0 14,6 1,8 16 18 50
K90O 50/8 M8 11,0 14,6 1,8 16 18 50
K90O 50/10 M10 11,0 14,6 1,8 16 18 50

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_kablowe_oczkowe_typu_K90O_EN.pdf EN 04-07-2025 290.58 KB PDF Download
Catalog card ERGOM_Koncowki_kablowe_oczkowe_typu_K90O_PL.pdf PL 04-07-2025 310.79 KB PDF Download
