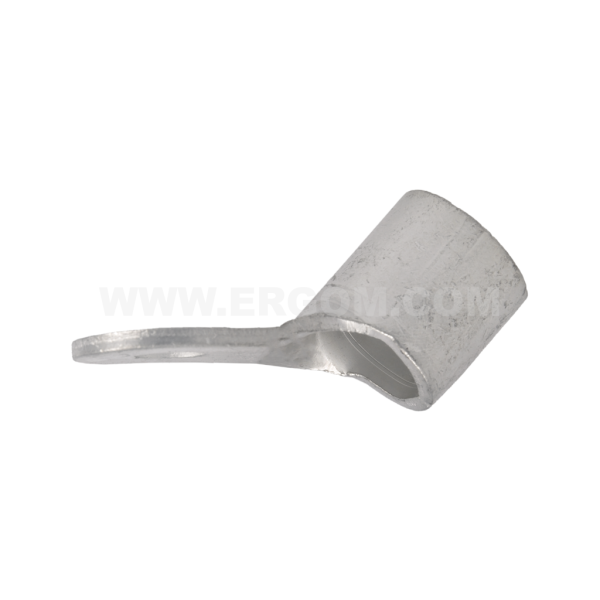

Angle ring terminals, K45O type

Angle ring terminals, K45O type

Main data of the product series

Product name
Angle ring terminals, K45O type
Category
Uninsulated ring, fork and pin terminals
Surface
tin-plated

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
K45O 1/2,5 E09KO-01040100700 1 100 pkt. Price on request
K45O 1/3 E09KO-01040100800 1 100 pkt. Price on request
K45O 1/3,5 E09KO-01040100900 1 100 pkt. Price on request
K45O 1/4 E09KO-01040101000 1 100 pkt. Price on request
K45O 1/5 E09KO-01040101100 1 100 pkt. Price on request
K45O 1/6 E09KO-01040101200 1 100 pkt. Price on request
K45O 1/8 E09KO-01040101300 1 100 pkt. Price on request
K45O 1/10 E09KO-01040101400 1 100 pkt. Price on request
K45O 2,5/3 E09KO-01040101500 1 100 pkt. Price on request
K45O 2,5/3,5 E09KO-01040101600 1 100 pkt. Price on request
K45O 2,5/4 E09KO-01040101700 1 100 pkt. Price on request
K45O 2,5/5 E09KO-01040101800 1 100 pkt. Price on request
K45O 2,5/6 E09KO-01040101900 1 100 pkt. Price on request
K45O 2,5/8 E09KO-01040102000 1 100 pkt. Price on request
K45O 2,5/10 E09KO-01040102100 1 100 pkt. Price on request
K45O 6/3,5 E09KO-01040102400 1 100 pkt. Price on request
K45O 6/4 E09KO-01040102500 1 100 pkt. Price on request
K45O 6/5 E09KO-01040102600 1 100 pkt. Price on request
K45O 6/6 E09KO-01040102700 1 100 pkt. Price on request
K45O 6/8 E09KO-01040102800 1 100 pkt. Price on request
K45O 6/10 E09KO-01040102900 1 100 pkt. Price on request
K45O 10/4 E09KO-01040103100 100 100 pcs. Price on request
K45O 10/5 E09KO-01040103200 100 100 pcs. Price on request
K45O 10/6 E09KO-01040103300 100 100 pcs. Price on request
K45O 10/8 E09KO-01040103400 100 100 pcs. Price on request
K45O 10/10 E09KO-01040103500 100 100 pcs. Price on request
K45O 16/5 E09KO-01040103700 100 100 pcs. Price on request
K45O 16/6 E09KO-01040103800 100 100 pcs. Price on request
K45O 16/8 E09KO-01040103900 100 100 pcs. Price on request
K45O 16/10 E09KO-01040104000 100 100 pcs. Price on request
K45O 25/5 E09KO-01040104200 100 100 pcs. Price on request
K45O 25/6 E09KO-01040104300 100 100 pcs. Price on request
K45O 25/8 E09KO-01040104400 100 100 pcs. Price on request
K45O 25/10 E09KO-01040104500 100 100 pcs. Price on request
K45O 25/12 E09KO-01040104650 100 100 pcs. Price on request
K45O 35/6 E09KO-01040104800 100 100 pcs. Price on request
K45O 35/8 E09KO-01040104900 100 100 pcs. Price on request
K45O 35/10 E09KO-01040105000 100 100 pcs. Price on request
K45O 35/12 E09KO-01040105150 100 100 pcs. Price on request
K45O 50/6 E09KO-01040105400 100 100 pcs. Price on request
K45O 50/8 E09KO-01040105500 100 100 pcs. Price on request
K45O 50/10 E09KO-01040105600 100 100 pcs. Price on request
K45O 50/12 E09KO-01040105750 100 100 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie DIN 46234 - before palm bending
Name Screw hole d D s a W Cross-section [mm²]
K45O 1/2,5 M2,5 1,6 3,2 0,8 5 6 0,75÷1,0
K45O 1/3 M3 1,6 3,2 0,8 5 6 0,75÷1,0
K45O 1/3,5 M3,5 1,6 3,2 0,8 5 6 0,75÷1,0
K45O 1/4 M4 1,6 3,2 0,8 5 8 0,75÷1,0
K45O 1/5 M5 1,6 3,2 0,8 5 10 0,75÷1,0
K45O 1/6 M6 1,6 3,2 0,8 5 10 0,75÷1,0
K45O 1/8 M8 1,6 3,2 0,8 5 14 0,75÷1,0
K45O 1/10 M10 1,6 3,2 0,8 5 14 0,75÷1,0
K45O 2,5/3 M3 2,3 3,9 0,8 5 6 1,5÷2,5
K45O 2,5/3,5 M3,5 2,3 3,9 0,8 5 6 1,5÷2,5
K45O 2,5/4 M4 2,3 3,9 0,8 5 8 1,5÷2,5
K45O 2,5/5 M5 2,3 3,9 0,8 5 10 1,5÷2,5
K45O 2,5/6 M6 2,3 3,9 0,8 5 11 1,5÷2,5
K45O 2,5/8 M8 2,3 3,9 0,8 5 14 1,5÷2,5
K45O 2,5/10 M10 2,3 3,9 0,8 5 18 1,5÷2,5
K45O 6/3,5 M3,5 3,6 5,6 1,0 6 8 4,0÷6,0
K45O 6/4 M4 3,6 5,6 1,0 6 8 4,0÷6,0
K45O 6/5 M5 3,6 5,6 1,0 6 10 4,0÷6,0
K45O 6/6 M6 3,6 5,6 1,0 6 11 4,0÷6,0
K45O 6/8 M8 3,6 5,6 1,0 6 14 4,0÷6,0
K45O 6/10 M10 3,6 5,6 1,0 6 18 4,0÷6,0
K45O 10/4 M4 4,5 6,7 1,1 8 10 10
K45O 10/5 M5 4,5 6,7 1,1 8 10 10
K45O 10/6 M6 4,5 6,7 1,1 8 11 10
K45O 10/8 M8 4,5 6,7 1,1 8 14 10
K45O 10/10 M10 4,5 6,7 1,1 8 18 10
K45O 16/5 M5 5,8 8,2 1,2 10 11 16
K45O 16/6 M6 5,8 8,2 1,2 10 11 16
K45O 16/8 M8 5,8 8,2 1,2 10 14 16
K45O 16/10 M10 5,8 8,2 1,2 10 18 16
K45O 25/5 M5 7,5 10,5 1,5 11 12 25
K45O 25/6 M6 7,5 10,5 1,5 11 12 25
K45O 25/8 M8 7,5 10,5 1,5 11 16 25
K45O 25/10 M10 7,5 10,5 1,5 11 18 25
K45O 25/12 M12 7,5 10,5 1,5 11 22 25
K45O 35/6 M6 9,0 12,2 1,6 12 15 35
K45O 35/8 M8 9,0 12,2 1,6 12 16 35
K45O 35/10 M10 9,0 12,2 1,6 12 18 35
K45O 35/12 M12 9,0 12,2 1,6 12 22 35
K45O 50/6 M6 11,0 14,6 1,8 16 18 50
K45O 50/8 M8 11,0 14,6 1,8 16 18 50
K45O 50/10 M10 11,0 14,6 1,8 16 18 50
K45O 50/12 M12 11,0 14,6 1,8 16 22 50

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_kablowe_oczkowe_typu_K45O_EN.pdf EN 04-07-2025 301.43 KB PDF Download
Catalog card ERGOM_Koncowki_kablowe_oczkowe_typu_K45O_PL.pdf PL 04-07-2025 322.38 KB PDF Download
