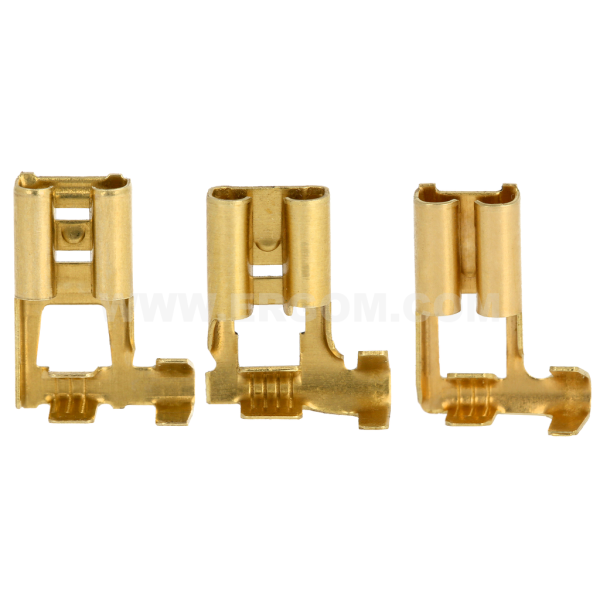

Angle female push-on connectors, NK...NC type

Angle female push-on connectors, NK...NC type

Main data of the product series

Product name: Angle female push-on connectors, NK...NC type
Category: Female push-on connectors
Surface: uncoated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
NK 4,8-1/0,8 NC	E10KN-01040200101	2	100	pkt.	Price on request
NK 6,3-1/0,8 NC	E10KN-01040200201	2	100	pkt.	Price on request
NK 6,3-2,5/0,8 NC	E10KN-01040200301	2	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	brass
Surface	uncoated

Name	Size	s	L₁	L₂	L₃	a₁	a₂	w₁	w₂	Cross-section [mm²]
NK 4,8-1/0,8 NC	4,8 x 0,8	0,35	14,5	7,0	5,0	10,4	2,8	3,0	4,5	0,5÷1
NK 6,3-1/0,8 NC	6,3 x 0,8	0,38	14,5	7,7	4,0	11,3	3,8	3,0	5,0	0,5÷1
NK 6,3-2,5/0,8 NC	6,3 x 0,8	0,38	15,0	7,4	4,2	11,5	3,0	3,8	5,5	1,5÷2,5

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Nasuwki_katowe_typu_NK_NC_EN.pdf	EN	04-07-2025	226.63 KB	PDF	Download
Catalog card	ERGOM_Nasuwki_katowe_typu_NK_NC_PL.pdf	PL	04-07-2025	246.14 KB	PDF	Download
