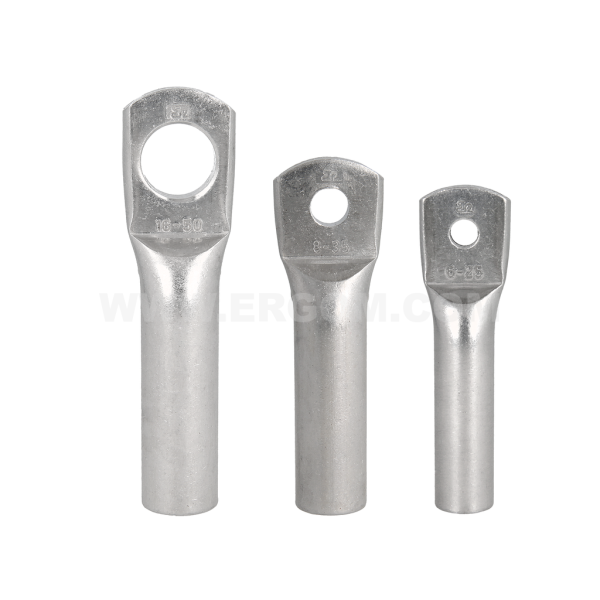

Aluminium thick-walled tubular cable lugs, KA type

Aluminium thick-walled tubular cable lugs, KA type

Main data of the product series

Product name
Aluminium thick-walled tubular cable lugs, KA type
Category
Ring
Surface
uncoated
Material
Al
Note!
Sector shaped conductors (sm) must be rounded with special dies. SK-AL contact grease is available separately in a 75 ml tube or a 750 ml container.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KA 16/6 E12KA-01040100100 100 100 pcs. Price on request
KA 16/8 E12KA-01040100200 100 100 pcs. Price on request
KA 16/10 E12KA-01040100300 100 100 pcs. Price on request
KA 25/6 E12KA-01040100400 100 100 pcs. Price on request
KA 25/8 E12KA-01040100500 100 100 pcs. Price on request
KA 25/10 E12KA-01040100600 100 100 pcs. Price on request
KA 25/12 E12KA-01040100700 100 100 pcs. Price on request
KA 35/6 E12KA-01040100800 100 100 pcs. Price on request
KA 35/8 E12KA-01040100900 100 100 pcs. Price on request
KA 35/12 E12KA-01040101100 100 100 pcs. Price on request
KA 35/16 E12KA-01040101300 100 100 pcs. Price on request
KA 50/8 E12KA-01040101400 100 100 pcs. Price on request
KA 50/10 E12KA-01040101500 100 100 pcs. Price on request
KA 50/16 E12KA-01040101800 100 100 pcs. Price on request
KA 70/8 E12KA-01040101900 100 100 pcs. Price on request
KA 70/10 E12KA-01040102000 100 100 pcs. Price on request
KA 70/12 E12KA-01040102100 100 100 pcs. Price on request
KA 70/14 E12KA-01040102200 100 100 pcs. Price on request
KA 70/16 E12KA-01040102300 100 100 pcs. Price on request
KA 95/10 E12KA-01040102400 50 50 pcs. Price on request
KA 95/14 E12KA-01040102600 50 50 pcs. Price on request
KA 95/16 E12KA-01040102700 50 50 pcs. Price on request
KA 120/10 E12KA-01040102800 50 50 pcs. Price on request
KA 120/12 E12KA-01040102900 50 50 pcs. Price on request
KA 120/14 E12KA-01040103000 50 50 pcs. Price on request
KA 120/20 E12KA-01040103200 50 50 pcs. Price on request
KA 150/10 E12KA-01040103300 50 50 pcs. Price on request
KA 150/12 E12KA-01040103400 50 50 pcs. Price on request
KA 150/14 E12KA-01040103500 50 50 pcs. Price on request
KA 150/16 E12KA-01040103600 50 50 pcs. Price on request
KA 150/20 E12KA-01040103700 50 50 pcs. Price on request
KA 185/14 E12KA-01040103900 50 50 pcs. Price on request
KA 185/16 E12KA-01040104000 50 50 pcs. Price on request
KA 185/20 E12KA-01040104100 50 50 pcs. Price on request
KA 240/12 E12KA-01040104200 50 50 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface uncoated
Wykonanie thick-walled
Name Screw hole d D a E W Cross-section, Al rm/sm [mm²] Cross-section, Al re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Number of crimping - wide Number of crimping - narrow
KA 16/6 M6 5,2 12,6 36 56 20 16 25 13 2 4
KA 16/8 M8 5,2 12,6 36 56 20 16 25 13 2 4
KA 16/10 M10 5,2 12,6 36 59 20 16 25 13 2 4
KA 25/6 M6 6,1 13,8 38 61 21 25 35 14 2 4
KA 25/8 M8 6,1 13,8 38 61 21 25 35 14 2 4
KA 25/10 M10 6,1 13,8 38 64 21 25 35 14 2 4
KA 25/12 M12 6,1 13,8 38 64 21 25 35 14 2 4
KA 35/6 M6 7,2 16,2 41 66 24 35 50 16 2 5
KA 35/8 M8 7,2 16,2 41 66 24 35 50 16 2 5
KA 35/12 M12 7,2 16,2 41 69 24 35 50 16 2 5
KA 35/16 M16 7,2 16,2 41 72 24 35 50 16 2 5
KA 50/8 M8 9,0 18,2 45 73 26 50 70 18 2 5
KA 50/10 M10 9,0 18,2 45 76 26 50 70 18 2 5
KA 50/16 M16 9,0 18,2 45 79 26 50 70 18 2 5
KA 70/8 M8 12,5 22,6 52 83 28 70 95 20 3 6
KA 70/10 M10 12,5 22,6 52 86 28 70 95 20 3 6
KA 70/12 M12 12,5 22,6 52 86 28 70 95 20 3 6
KA 70/14 M14 12,5 22,6 52 86 28 70 95 20 3 6
KA 70/16 M16 12,5 22,6 52 89 28 70 95 20 3 6
KA 95/10 M10 13,9 25,8 57 91 31 95 120 22 3 6
KA 95/14 M14 13,9 25,8 57 94 31 95 120 22 3 6
KA 95/16 M16 13,9 25,8 57 94 31 95 120 22 3 6
KA 120/10 M10 15,5 28,0 61 96 37 120 150 25 3 7
KA 120/12 M12 15,5 28,0 61 96 37 120 150 25 3 7
KA 120/14 M14 15,5 28,0 61 99 37 120 150 25 3 7
KA 120/20 M20 15,5 28,0 61 104 37 120 150 25 3 7
KA 150/10 M10 17,8 30,0 60 98 41 150 185 28 3 7
KA 150/12 M12 17,8 30,0 60 98 41 150 185 28 3 7
KA 150/14 M14 17,8 30,0 60 101 41 150 185 28 3 7
KA 150/16 M16 17,8 30,0 60 101 41 150 185 28 3 7
KA 150/20 M20 17,8 30,0 60 106 41 150 185 28 3 7
KA 185/14 M14 19,8 34,0 70 118 43 185 240 30 3 7
KA 185/16 M16 19,8 34,0 70 118 43 185 240 30 3 7
KA 185/20 M20 17,8 30,0 70 123 43 185 240 30 3 7
KA 240/12 M12 17,8 30,0 67 114 49 240 300 34 3 8
