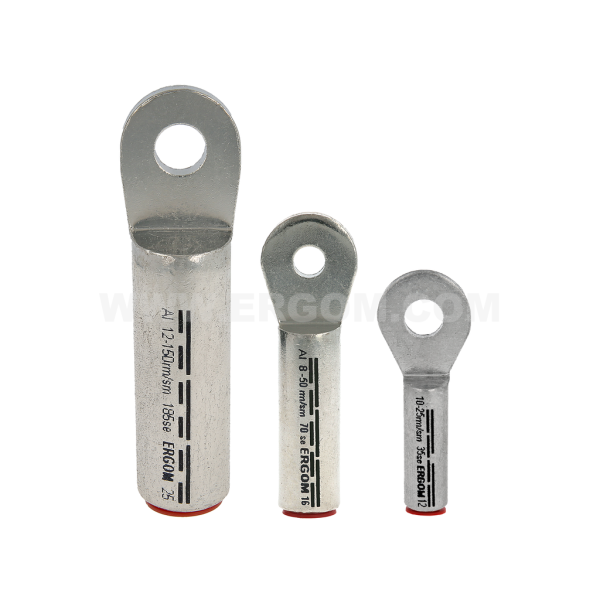

Aluminium longitudinally sealed tubular cable lugs, KRAC type

Aluminium longitudinally sealed tubular cable lugs, KRAC type

Main data of the product series

Product name
Aluminium longitudinally sealed tubular cable lugs, KRAC type
Category
Ring
Surface
tin-plated
Material
Al
Note!
- cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies. Without contact grease on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KRAC 16/8 E12KA-01010300100 100 100 pcs. Price on request
KRAC 16/8 E12KA-01010300102 20 10 pcs. Price on request
KRAC 16/10 E12KA-01010300200 100 100 pcs. Price on request
KRAC 16/10 E12KA-01010300202 20 10 pcs. Price on request
KRAC 16/12 E12KA-01010300300 100 100 pcs. Price on request
KRAC 16/12 E12KA-01010300302 20 10 pcs. Price on request
KRAC 25/8 E12KA-01010300400 100 100 pcs. Price on request
KRAC 25/8 E12KA-01010300402 20 10 pcs. Price on request
KRAC 25/10 E12KA-01010300500 100 100 pcs. Price on request
KRAC 25/10 E12KA-01010300502 20 10 pcs. Price on request
KRAC 25/12 E12KA-01010300600 100 100 pcs. Price on request
KRAC 25/12 E12KA-01010300602 20 10 pcs. Price on request
KRAC 35/8 E12KA-01010300700 100 100 pcs. Price on request
KRAC 35/8 E12KA-01010300702 20 10 pcs. Price on request
KRAC 35/10 E12KA-01010300800 100 100 pcs. Price on request
KRAC 35/10 E12KA-01010300802 20 10 pcs. Price on request
KRAC 35/12 E12KA-01010300900 100 100 pcs. Price on request
KRAC 35/12 E12KA-01010300902 20 10 pcs. Price on request
KRAC 35/14 E12KA-01010301000 100 100 pcs. Price on request
KRAC 35/14 E12KA-01010301002 20 10 pcs. Price on request
KRAC 50/8 E12KA-01010301100 100 100 pcs. Price on request
KRAC 50/8 E12KA-01010301102 20 10 pcs. Price on request
KRAC 50/10 E12KA-01010301200 100 100 pcs. Price on request
KRAC 50/10 E12KA-01010301202 20 10 pcs. Price on request
KRAC 50/12 E12KA-01010301300 100 100 pcs. Price on request
KRAC 50/12 E12KA-01010301302 20 10 pcs. Price on request
KRAC 50/14 E12KA-01010301400 100 100 pcs. Price on request
KRAC 50/14 E12KA-01010301402 20 10 pcs. Price on request
KRAC 70/8 E12KA-01010301500 100 100 pcs. Price on request
KRAC 70/8 E12KA-01010301502 20 10 pcs. Price on request
KRAC 70/10 E12KA-01010301600 100 100 pcs. Price on request
KRAC 70/10 E12KA-01010301602 20 10 pcs. Price on request
KRAC 70/12 E12KA-01010301700 100 100 pcs. Price on request
KRAC 70/12 E12KA-01010301702 20 10 pcs. Price on request
KRAC 70/14 E12KA-01010301800 100 100 pcs. Price on request
KRAC 70/14 E12KA-01010301802 20 10 pcs. Price on request
KRAC 70/16 E12KA-01010301900 100 100 pcs. Price on request
KRAC 70/16 E12KA-01010301902 20 10 pcs. Price on request
KRAC 95/10 E12KA-01010302000 50 50 pcs. Price on request
KRAC 95/10 E12KA-01010302002 10 10 pcs. Price on request
KRAC 95/12 E12KA-01010302100 50 50 pcs. Price on request
KRAC 95/12 E12KA-01010302102 10 10 pcs. Price on request
KRAC 95/14 E12KA-01010302200 50 50 pcs. Price on request
KRAC 95/14 E12KA-01010302202 10 10 pcs. Price on request
KRAC 95/16 E12KA-01010302300 50 50 pcs. Price on request
KRAC 95/16 E12KA-01010302302 10 10 pcs. Price on request
KRAC 120/10 E12KA-01010302400 50 50 pcs. Price on request
KRAC 120/10 E12KA-01010302402 10 10 pcs. Price on request
KRAC 120/12 E12KA-01010302500 50 50 pcs. Price on request
KRAC 120/12 E12KA-01010302502 10 10 pcs. Price on request
KRAC 120/14 E12KA-01010302600 50 50 pcs. Price on request
KRAC 120/14 E12KA-01010302602 10 10 pcs. Price on request
KRAC 120/16 E12KA-01010302700 50 50 pcs. Price on request
KRAC 120/16 E12KA-01010302702 10 10 pcs. Price on request
KRAC 150/10 E12KA-01010302800 50 50 pcs. Price on request
KRAC 150/10 E12KA-01010302802 10 10 pcs. Price on request
KRAC 150/12 E12KA-01010302900 50 50 pcs. Price on request
KRAC 150/12 E12KA-01010302902 10 10 pcs. Price on request
KRAC 150/14 E12KA-01010303000 50 50 pcs. Price on request
KRAC 150/14 E12KA-01010303002 10 10 pcs. Price on request
KRAC 150/16 E12KA-01010303100 50 50 pcs. Price on request
KRAC 150/16 E12KA-01010303102 10 10 pcs. Price on request
KRAC 150/20 E12KA-01010303200 50 50 pcs. Price on request
KRAC 150/20 E12KA-01010303202 10 10 pcs. Price on request
KRAC 185/10 E12KA-01010303300 50 50 pcs. Price on request
KRAC 185/10 E12KA-01010303302 10 10 pcs. Price on request
KRAC 185/12 E12KA-01010303400 50 50 pcs. Price on request
KRAC 185/12 E12KA-01010303402 10 10 pcs. Price on request
KRAC 185/14 E12KA-01010303500 50 50 pcs. Price on request
KRAC 185/14 E12KA-01010303502 10 10 pcs. Price on request
KRAC 185/16 E12KA-01010303600 50 50 pcs. Price on request
KRAC 185/16 E12KA-01010303602 10 10 pcs. Price on request
KRAC 185/20 E12KA-01010303700 50 50 pcs. Price on request
KRAC 185/20 E12KA-01010303702 10 10 pcs. Price on request
KRAC 240/10 E12KA-01010303800 50 50 pcs. Price on request
KRAC 240/10 E12KA-01010303802 10 10 pcs. Price on request
KRAC 240/12 E12KA-01010303900 50 50 pcs. Price on request
KRAC 240/12 E12KA-01010303902 10 10 pcs. Price on request
KRAC 240/14 E12KA-01010304000 50 50 pcs. Price on request
KRAC 240/14 E12KA-01010304002 10 10 pcs. Price on request
KRAC 240/16 E12KA-01010304100 50 50 pcs. Price on request
KRAC 240/16 E12KA-01010304102 10 10 pcs. Price on request
KRAC 240/20 E12KA-01010304200 50 50 pcs. Price on request
KRAC 240/20 E12KA-01010304202 10 10 pcs. Price on request
KRAC 300/12 E12KA-01010304400 25 25 pcs. Price on request
KRAC 300/12 E12KA-01010304402 10 10 pcs. Price on request
KRAC 300/14 E12KA-01010304500 25 25 pcs. Price on request
KRAC 300/14 E12KA-01010304502 10 10 pcs. Price on request
KRAC 300/16 E12KA-01010304600 25 25 pcs. Price on request
KRAC 300/16 E12KA-01010304602 10 10 pcs. Price on request
KRAC 300/20 E12KA-01010304700 25 25 pcs. Price on request
KRAC 300/20 E12KA-01010304702 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface tin-plated
Normy EN IEC 61238-1-1:2019 EN IEC 61238-1-3:2019 - mechanical strength Class 1 - Short-circuit resistance Class A for range of rated cross-section 16 - 300 mm²
Wykonanie DIN 46329
Name Screw hole DIN d D a min c1 c2 E W S Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Nr gniazda - 2 klasa (RMC) Number of crimping - wide Number of crimping - narrow
KRAC 16/8 M8 – 5,4 12,0 30 12,5 15,5 50 25 4 16 25 12 MW16 2 4
KRAC 16/8 M8 − 5,4 12,0 30 12,5 15,5 50 25 4 16 25 12 MW16 2 4
KRAC 16/10 M10 – 5,4 12,0 30 12,5 15,5 50 25 4 16 25 12 MW16 2 4
KRAC 16/10 M10 − 5,4 12,0 30 12,5 15,5 50 25 4 16 25 12 MW16 2 4
KRAC 16/12 M12 – 5,4 12,0 30 12,5 15,5 50 25 4 16 25 12 MW16 2 4
KRAC 16/12 M12 − 5,4 12,0 30 12,5 15,5 50 25 4 16 25 12 MW16 2 4
KRAC 25/8 M8 √ 6,8 12,0 30 12,5 15,5 50 25 4 25 35 12 MW25 2 4
KRAC 25/10 M10 √ 6,8 12,0 30 12,5 15,5 50 25 4 25 35 12 MW25 2 4
KRAC 25/12 M12 √ 6,8 12,0 30 12,5 15,5 50 25 4 25 35 12 MW25 2 4
KRAC 35/8 M8 √ 8,0 14,0 42 12,5 15,5 62 25 4 35 50 14 MW35 3 5
KRAC 35/10 M10 √ 8,0 14,0 42 12,5 15,5 62 25 4 35 50 14 MW35 3 5
KRAC 35/12 M12 √ 8,0 14,0 42 12,5 15,5 62 25 4 35 50 14 MW35 3 5
KRAC 35/14 M14 – 8,0 14,0 42 12,5 15,5 62 25 4 35 50 14 MW35 3 5
KRAC 35/14 M14 − 8,0 14,0 42 12,5 15,5 62 25 4 35 50 14 MW35 3 5
KRAC 50/8 M8 √ 9,8 16,0 42 12,5 15,5 62 25 8 50 70 16 MW50 3 5
KRAC 50/10 M10 √ 9,8 16,0 42 12,5 15,5 62 25 8 50 70 16 MW50 3 5
KRAC 50/12 M12 √ 9,8 16,0 42 12,5 15,5 62 25 8 50 70 16 MW50 3 5
KRAC 50/14 M14 – 9,8 16,0 42 12,5 15,5 62 25 8 50 70 16 MW50 3 5
KRAC 50/14 M14 − 9,8 16,0 42 12,5 15,5 62 25 8 50 70 16 MW50 3 5
KRAC 70/8 M8 √ 11,2 18,5 52 12,5 15,5 72 25 8 70 95 18 MW70 3 6
KRAC 70/10 M10 √ 11,2 18,5 52 12,5 15,5 72 25 8 70 95 18 MW70 3 6
KRAC 70/12 M12 √ 11,2 18,5 52 12,5 15,5 72 25 8 70 95 18 MW70 3 6
KRAC 70/14 M14 – 11,2 18,5 52 12,5 15,5 72 25 8 70 95 18 MW70 3 6
KRAC 70/14 M14 − 11,2 18,5 52 12,5 15,5 72 25 8 70 95 18 MW70 3 6
KRAC 70/16 M16 – 11,2 18,5 52 12,5 15,5 72 25 8 70 95 18 MW70 3 6
KRAC 70/16 M16 − 11,2 18,5 52 12,5 15,5 72 25 8 70 95 18 MW70 3 6
KRAC 95/10 M10 √ 13,2 22,0 56 12,5 15,5 75 25 8 95 120 22 MW95 3 6
KRAC 95/12 M12 √ 13,2 22,0 56 12,5 15,5 75 25 8 95 120 22 MW95 3 6
KRAC 95/14 M14 – 13,2 22,0 56 12,5 15,5 75 25 8 95 120 22 MW95 3 6
KRAC 95/14 M14 − 13,2 22,0 56 12,5 15,5 75 25 8 95 120 22 MW95 3 6
KRAC 95/16 M16 – 13,2 22,0 56 12,5 15,5 75 25 8 95 120 22 MW95 3 6
KRAC 95/16 M16 − 13,2 22,0 56 12,5 15,5 75 25 8 95 120 22 MW95 3 6
KRAC 120/10 M10 √ 14,7 23,0 56 15,0 20,0 80 30 8 120 150 22 MW120 3 6
KRAC 120/12 M12 √ 14,7 23,0 56 15,0 20,0 80 30 8 120 150 22 MW120 3 6
KRAC 120/14 M14 – 14,7 23,0 56 15,0 20,0 80 30 8 120 150 22 MW120 3 6
KRAC 120/14 M14 − 14,7 23,0 56 15,0 20,0 80 30 8 120 150 22 MW120 3 6
KRAC 120/16 M16 √ 14,7 23,0 56 15,0 20,0 80 30 8 120 150 22 MW120 3 6
KRAC 150/10 M10 √ 16,3 25,0 60 15,0 20,0 90 30 8 150 185 25 MW150 3 6
KRAC 150/12 M12 √ 16,3 25,0 60 15,0 20,0 90 30 8 150 185 25 MW150 3 6
KRAC 150/14 M14 – 16,3 25,0 60 15,0 20,0 90 30 8 150 185 25 MW150 3 6
KRAC 150/14 M14 − 16,3 25,0 60 15,0 20,0 90 30 8 150 185 25 MW150 3 6
KRAC 150/16 M16 √ 16,3 25,0 60 15,0 20,0 90 30 8 150 185 25 MW150 3 6
KRAC 150/20 M20 – 16,3 25,0 60 15,0 20,0 90 30 8 150 185 25 MW150 3 6
KRAC 150/20 M20 − 16,3 25,0 60 15,0 20,0 90 30 8 150 185 25 MW150 3 6
KRAC 185/10 M10 √ 18,3 28,5 60 15,0 20,0 91 30 8 185 240 28 MW185 3 6
KRAC 185/12 M12 √ 18,3 28,5 60 15,0 20,0 91 30 8 185 240 28 MW185 3 6
KRAC 185/14 M14 – 18,3 28,5 60 15,0 20,0 91 30 8 185 240 28 MW185 3 6
KRAC 185/14 M14 − 18,3 28,5 60 15,0 20,0 91 30 8 185 240 28 MW185 3 6
KRAC 185/16 M16 √ 18,3 28,5 60 15,0 20,0 91 30 8 185 240 28 MW185 3 6
KRAC 185/20 M20 – 18,3 28,5 60 15,0 20,0 91 30 8 185 240 28 MW185 3 6
KRAC 185/20 M20 − 18,3 28,5 60 15,0 20,0 91 30 8 185 240 28 MW185 3 6
KRAC 240/10 M10 – 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 240/10 M10 − 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 240/12 M12 √ 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 240/14 M14 – 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 240/14 M14 − 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 240/16 M16 √ 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 240/20 M20 – 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 240/20 M20 − 21,0 32,0 70 19,0 24,0 103 38 11 240 300 32 MW240 3 8
KRAC 300/12 M12 √ 23,3 34,0 70 19,0 24,0 103 38 13 300 - 34 MW300 3 -
KRAC 300/14 M14 – 23,3 34,0 70 19,0 24,0 103 38 13 300 - 34 MW300 3 -
KRAC 300/14 M14 − 23,3 34,0 70 19,0 24,0 103 38 13 300 - 34 MW300 3 -
KRAC 300/16 M16 √ 23,3 34,0 70 19,0 24,0 103 38 13 300 - 34 MW300 3 -
KRAC 300/20 M20 √ 23,3 34,0 70 19,0 24,0 103 38 13 300 - 34 MW300 3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_aluminiowe_szczelne_typu_KRAC_EN.pdf EN 26-09-2025 476.69 KB PDF Download
Catalog card ERGOM_Koncowki_aluminiowe_szczelne_typu_KRAC_PL.pdf PL 05-09-2025 494.18 KB PDF Download
