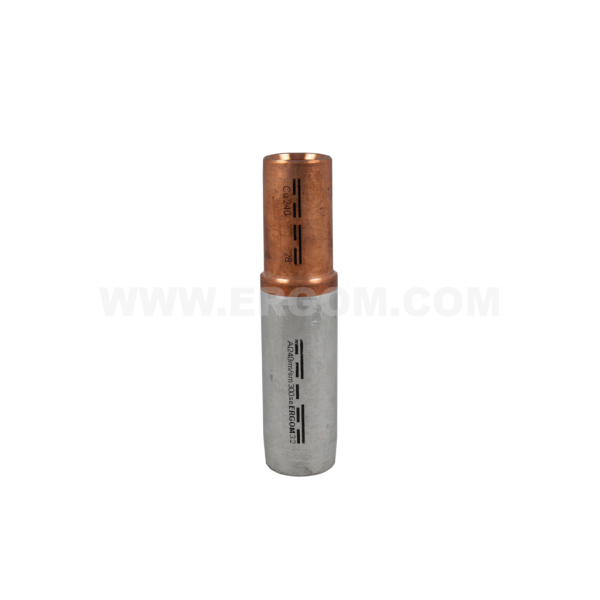

Aluminium-copper tubular cable connectors, LMANW type

Aluminium-copper tubular cable connectors, LMANW type

Main data of the product series

Product name
Aluminium-copper tubular cable connectors, LMANW type
Category
Connectors
Surface
uncoated
Material
Al-Cu
Note!
- cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LMANW 70/35 E13KC-01040100100 10 10 pcs. Price on request
LMANW 70/50 E13KC-01040100200 10 10 pcs. Price on request
LMANW 70/70 E13KC-01040100300 10 10 pcs. Price on request
LMANW 95/35 E13KC-01040100400 10 10 pcs. Price on request
LMANW 95/50 E13KC-01040100500 10 10 pcs. Price on request
LMANW 95/70 E13KC-01040100600 10 10 pcs. Price on request
LMANW 95/95 E13KC-01040100700 10 10 pcs. Price on request
LMANW 120/35 E13KC-01040100800 10 10 pcs. Price on request
LMANW 120/50 E13KC-01040100900 10 10 pcs. Price on request
LMANW 120/70 E13KC-01040101000 10 10 pcs. Price on request
LMANW 120/95 E13KC-01040101100 10 10 pcs. Price on request
LMANW 120/120 E13KC-01040101200 10 10 pcs. Price on request
LMANW 150/70 E13KC-01040101300 10 10 pcs. Price on request
LMANW 150/95 E13KC-01040101400 10 10 pcs. Price on request
LMANW 150/120 E13KC-01040101500 10 10 pcs. Price on request
LMANW 150/150 E13KC-01040101600 10 10 pcs. Price on request
LMANW 185/70 E13KC-01040101700 10 10 pcs. Price on request
LMANW 185/95 E13KC-01040101800 10 10 pcs. Price on request
LMANW 185/120 E13KC-01040101900 10 10 pcs. Price on request
LMANW 185/150 E13KC-01040102000 10 10 pcs. Price on request
LMANW 185/185 E13KC-01040102100 10 10 pcs. Price on request
LMANW 240/120 E13KC-01040102200 10 10 pcs. Price on request
LMANW 240/150 E13KC-01040102300 10 10 pcs. Price on request
LMANW 240/185 E13KC-01040102400 10 10 pcs. Price on request
LMANW 240/240 E13KC-01040102500 10 10 pcs. Price on request
LMANW 300/150 E13KC-01040102600 10 10 pcs. Price on request
LMANW 300/185 E13KC-01040102700 1 10 pcs. Price on request
LMANW 300/240 E13KC-01040102800 1 10 pcs. Price on request
LMANW 300/300 E13KC-01040102900 1 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al-Cu
Surface uncoated
Name L d1 D1 d2 D2 Cross-section, Al rm/sm [mm²] Cross-section, Al re/se [mm²] Cross-section, Cu rm/sm [mm²] Socket code no., Al Number of crimping - wide Al Number of crimping - narrow Al Socket code no., Cu Number of crimping - wide Cu Number of crimping - narrow Cu
LMANW 70/35 85 11,2 18,5 8,2 12,5 70 95 35 18 2 4 12 1 2
LMANW 70/50 93 11,2 18,5 10,0 14,5 70 95 50 18 2 4 14 1 3
LMANW 70/70 93 11,2 18,5 11,5 16,5 70 95 70 18 2 4 16 1 4
LMANW 95/35 89 13,2 22,0 8,2 12,5 95 120 35 22 2 4 12 1 2
LMANW 95/50 97 13,2 22,0 10,0 14,5 95 120 50 22 2 4 14 1 3
LMANW 95/70 97 13,2 22,0 11,5 16,5 95 120 70 22 2 4 16 1 3
LMANW 95/95 104 13,2 22,0 13,5 19,0 95 120 95 22 2 4 18 2 4
LMANW 120/35 89 14,7 23,0 8,2 12,5 120 150 35 22 2 4 12 1 2
LMANW 120/50 97 14,7 23,0 10,0 14,5 120 150 50 22 2 4 14 1 3
LMANW 120/70 97 14,7 23,0 11,5 16,5 120 150 70 22 2 4 16 1 3
LMANW 120/95 104 14,7 23,0 13,5 19,0 120 150 95 22 2 4 18 2 4
LMANW 120/120 104 14,7 23,0 15,5 21,0 120 150 120 22 2 4 20 2 4
LMANW 150/70 101 16,3 25,0 11,5 16,5 150 185 70 25 2 4 16 1 3
LMANW 150/95 108 16,3 25,0 13,5 19,0 150 185 95 25 2 4 18 2 4
LMANW 150/120 108 16,3 25,0 15,5 21,0 150 185 120 25 2 4 20 2 4
LMANW 150/150 108 16,3 25,0 17,0 23,5 150 185 150 25 2 4 22 2 4
LMANW 185/70 105 18,3 28,5 11,5 16,5 185 240 70 28 2 5 16 1 3
LMANW 185/95 112 18,3 28,5 13,5 19,0 185 240 95 28 2 5 18 2 4
LMANW 185/120 112 18,3 28,5 15,5 21,0 185 240 120 28 2 5 20 2 4
LMANW 185/150 112 18,3 28,5 17,0 23,5 185 240 150 28 2 5 22 2 4
LMANW 185/185 117 18,3 28,5 19,0 25,5 185 240 185 28 2 5 25 2 5
LMANW 240/120 123 21,0 32,0 15,5 21,0 240 300 120 32 2 5 20 2 4
LMANW 240/150 123 21,0 32,0 17,0 23,5 240 300 150 32 2 5 22 2 4
LMANW 240/185 128 21,0 32,0 19,0 25,5 240 300 185 32 2 5 25 2 5
LMANW 240/240 128 21,0 32,0 21,5 29,0 240 300 240 32 2 5 28 2 5
LMANW 300/150 124 23,3 34,0 17,0 23,5 300 - 150 34 3 – 22 2 4
LMANW 300/185 129 23,3 34,0 19,0 25,5 300 - 185 34 3 – 25 2 5
LMANW 300/240 129 23,3 34,0 21,5 29,0 300 - 240 34 3 – 28 2 5
LMANW 300/300 139 23,3 34,0 24,5 32,0 300 - 300 34 3 – 32 2 6
