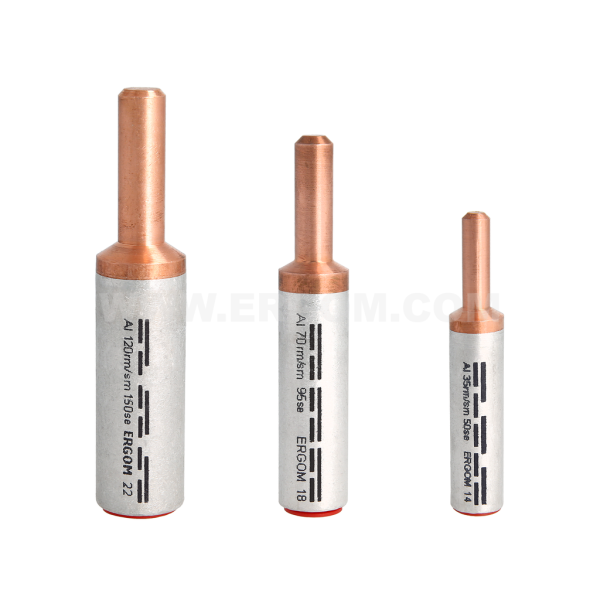

Aluminium-copper pin terminals, BMAN type

Aluminium-copper pin terminals, BMAN type

Main data of the product series

Product name
Aluminium-copper pin terminals, BMAN type
Category
Pins
Surface
uncoated
Material
Al-Cu
Note!
- cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
BMAN 16 E13KC-01050100020 1 10 pcs. Price on request
BMAN 25 E13KC-01050100100 10 10 pcs. Price on request
BMAN 35 E13KC-01050100200 10 10 pcs. Price on request
BMAN 50 E13KC-01050100300 10 10 pcs. Price on request
BMAN 70 E13KC-01050100400 10 10 pcs. Price on request
BMAN 95 E13KC-01050100500 10 10 pcs. Price on request
BMAN 120 E13KC-01050100600 10 10 pcs. Price on request
BMAN 150 E13KC-01050100700 10 10 pcs. Price on request
BMAN 185 E13KC-01050100800 10 10 pcs. Price on request
BMAN 240 E13KC-01050100900 10 10 pcs. Price on request
BMAN 300 E13KC-01050101000 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al-Cu
Surface uncoated
Wykonanie DIN 46329 – concerns diameters the tubular part (Al) apart from BMAN 16 type
Name a L1 L2 d1 D1 D2 Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Nr gniazda - 2 klasa (RMC) Number of crimping - wide Number of crimping - narrow
BMAN 16 32 65 23 5,5 12,0 6 16 25 12 MW16 2 4
BMAN 25 31 65 23 6,8 12,0 6 25 35 12 MW25 2 4
BMAN 35 43 77 23 8,0 14,0 7 35 50 14 MW35 3 5
BMAN 50 43 86 32 9,8 16,0 8 50 70 16 MW50 3 5
BMAN 70 53 96 32 11,2 18,5 10 70 95 18 MW70 3 6
BMAN 95 57 108 38 13,2 22,0 12 95 120 22 MW95 3 6
BMAN 120 57 108 38 14,7 23,0 12 120 150 22 MW120 3 6
BMAN 150 61 112 38 16,3 25,0 12 150 185 25 MW150 3 7
BMAN 185 61 120 44 18,3 28,5 14 185 240 28 MW185 3 7
BMAN 240 71 132 44 21,0 32,0 16 240 300 32 MW240 3 7
BMAN 300 71 142 46 23,3 34,0 18 300 - 38 MW300 3 7
