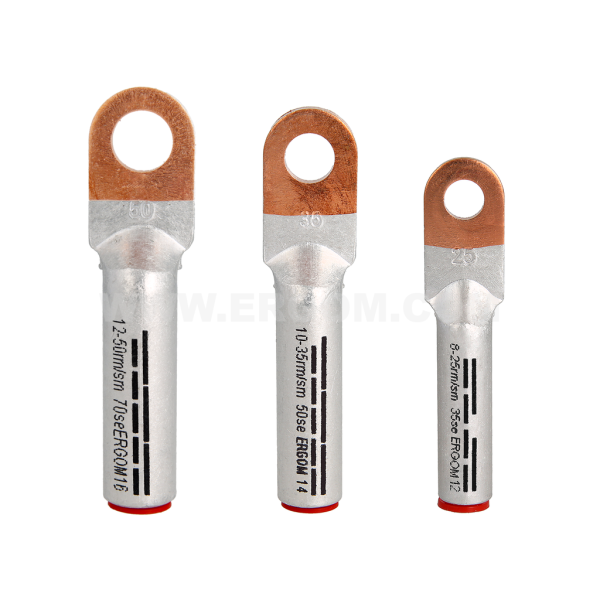

Aluminium-copper longitudinally sealed tubular cable lugs, TMA type

Aluminium-copper longitudinally sealed tubular cable lugs, TMA type

Main data of the product series

Product name
Aluminium-copper longitudinally sealed tubular cable lugs, TMA type
Category
Ring
Surface
uncoated
Material
Al-Cu
Note!
- cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TMA 16/8 E13KC-01020100100 10 10 pcs. Price on request
TMA 16/10 E13KC-01020100200 10 10 pcs. Price on request
TMA 25/8 E13KC-01020100300 10 10 pcs. Price on request
TMA 25/10 E13KC-01020100400 10 10 pcs. Price on request
TMA 35/8 E13KC-01020100500 10 10 pcs. Price on request
TMA 35/10 E13KC-01020100600 10 10 pcs. Price on request
TMA 50/8 E13KC-01020100700 10 10 pcs. Price on request
TMA 50/10 E13KC-01020100800 10 10 pcs. Price on request
TMA 50/12 E13KC-01020100900 10 10 pcs. Price on request
TMA 70/10 E13KC-01020101100 10 10 pcs. Price on request
TMA 70/12 E13KC-01020101200 10 10 pcs. Price on request
TMA 70/16 E13KC-01020101300 10 10 pcs. Price on request
TMA 95/10 E13KC-01020101500 10 10 pcs. Price on request
TMA 95/12 E13KC-01020101600 10 10 pcs. Price on request
TMA 95/16 E13KC-01020101700 10 10 pcs. Price on request
TMA 120/10 E13KC-01020101900 10 10 pcs. Price on request
TMA 120/12 E13KC-01020102000 10 10 pcs. Price on request
TMA 120/16 E13KC-01020102100 10 10 pcs. Price on request
TMA 150/10 E13KC-01020102300 10 10 pcs. Price on request
TMA 150/12 E13KC-01020102400 10 10 pcs. Price on request
TMA 150/16 E13KC-01020102500 10 10 pcs. Price on request
TMA 150/20 E13KC-01020102600 10 10 pcs. Price on request
TMA 185/10 E13KC-01020102800 10 10 pcs. Price on request
TMA 185/12 E13KC-01020102900 10 10 pcs. Price on request
TMA 185/16 E13KC-01020103000 10 10 pcs. Price on request
TMA 185/20 E13KC-01020103100 10 10 pcs. Price on request
TMA 240/10 E13KC-01020103300 10 10 pcs. Price on request
TMA 240/12 E13KC-01020103400 10 10 pcs. Price on request
TMA 240/16 E13KC-01020103500 10 10 pcs. Price on request
TMA 240/20 E13KC-01020103600 10 10 pcs. Price on request
TMA 300/10 E13KC-01020103800 10 10 pcs. Price on request
TMA 300/12 E13KC-01020103900 10 10 pcs. Price on request
TMA 300/16 E13KC-01020104000 10 10 pcs. Price on request
TMA 300/20 E13KC-01020104100 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al-Cu
Surface uncoated
Name Screw hole a d D E S W Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
TMA 16/8 M8 32 5,8 10 70 2,5 16,0 16 25 10 2 4
TMA 16/10 M10 32 5,8 10 70 2,5 16,0 16 25 10 2 4
TMA 25/8 M8 34 7,2 12 75 3,0 17,5 25 35 12 2 4
TMA 25/10 M10 34 7,2 12 75 3,0 17,5 25 35 12 2 4
TMA 35/8 M8 40 8,5 14 85 3,5 20,0 35 50 14 3 5
TMA 35/10 M10 40 8,5 14 85 3,5 20,0 35 50 14 3 5
TMA 50/8 M8 42 9,7 16 90 3,5 23,0 50 70 16 3 5
TMA 50/10 M10 42 9,7 16 90 3,5 23,0 50 70 16 3 5
TMA 50/12 M12 42 9,7 16 90 3,5 23,0 50 70 16 3 5
TMA 70/10 M10 47 11,5 18 102 4,0 26,0 70 95 18 3 6
TMA 70/12 M12 47 11,5 18 102 4,0 26,0 70 95 18 3 6
TMA 70/16 M16 47 11,5 18 102 4,0 26,0 70 95 18 3 6
TMA 95/10 M10 50 13,5 20 112 4,5 28,0 95 120 20 3 6
TMA 95/12 M12 50 13,5 20 112 4,5 28,0 95 120 20 3 6
TMA 95/16 M16 50 13,5 20 112 4,5 28,0 95 120 20 3 6
TMA 120/10 M10 53 15,0 22 120 5,0 31,0 120 150 22 3 7
TMA 120/12 M12 53 15,0 22 120 5,0 31,0 120 150 22 3 7
TMA 120/16 M16 53 15,0 22 120 5,0 31,0 120 150 22 3 7
TMA 150/10 M10 55 16,5 24 125 5,5 35,0 150 185 23 3 7
TMA 150/12 M12 55 16,5 24 125 5,5 35,0 150 185 23 3 7
TMA 150/16 M16 55 16,5 24 125 5,5 35,0 150 185 23 3 7
TMA 150/20 M20 55 16,5 24 125 5,5 35,0 150 185 23 3 7
TMA 185/10 M10 58 18,5 27 133 5,7 37,5 185 240 26 3 7
TMA 185/12 M12 58 18,5 27 133 5,7 37,5 185 240 26 3 7
TMA 185/16 M16 58 18,5 27 133 5,7 37,5 185 240 26 3 7
TMA 185/20 M20 58 18,5 27 133 5,7 37,5 185 240 26 3 7
TMA 240/10 M10 60 21,0 30 140 6,5 40,0 240 300 30 3 8
TMA 240/12 M12 60 21,0 30 140 6,5 40,0 240 300 30 3 8
TMA 240/16 M16 60 21,0 30 140 6,5 40,0 240 300 30 3 8
TMA 240/20 M20 60 21,0 30 140 6,5 40,0 240 300 30 3 8
TMA 300/10 M10 65 23,5 34 160 7,0 44,5 300 - 34 3 8
TMA 300/12 M12 65 23,5 34 160 7,0 44,5 300 - 34 3 8
TMA 300/16 M16 65 23,5 34 160 7,0 44,5 300 - 34 3 8
TMA 300/20 M20 65 23,5 34 160 7,0 44,5 300 - 34 3 8

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_szczelne_aluminiowo-miedziane_typu_TMA_EN.pdf EN 05-09-2025 255.98 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_szczelne_aluminiowo-miedziane_typu_TMA_PL.pdf PL 05-09-2025 275.44 KB PDF Download
