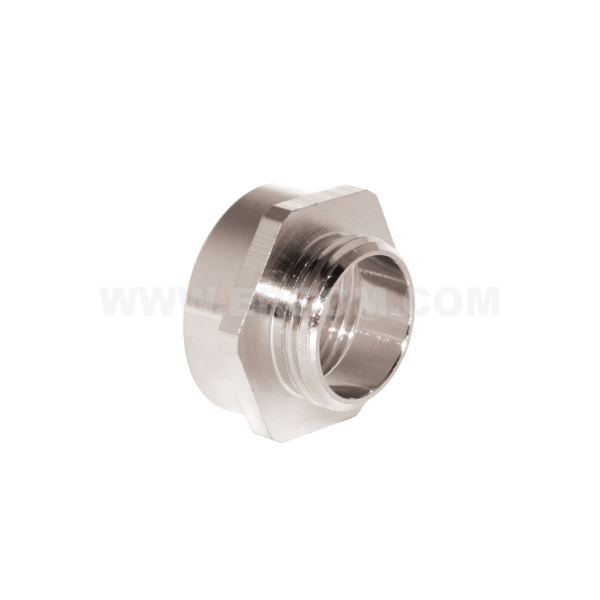

Adapter, MDA...PG/PG type

Adapter, MDA...PG/PG type

Main data of the product series

Product name
Adapter, MDA...PG/PG type
Category
Metal accessories
Material
nickel-plated brass
Note!
Nuts and adapter seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDA 7/9 E03DK-04070100103 10 10 pcs. Price on request
MDA 9/11 E03DK-04070100203 10 10 pcs. Price on request
MDA 9/13 E03DK-04070100303 10 10 pcs. Price on request
MDA 11/13 E03DK-04070100403 10 10 pcs. Price on request
MDA 11/16 E03DK-04070100503 10 10 pcs. Price on request
MDA 13/16 E03DK-04070100603 10 10 pcs. Price on request
MDA 16/21 E03DK-04070100703 10 10 pcs. Price on request
MDA 21/29 E03DK-04070100803 10 10 pcs. Price on request
MDA 29/36 E03DK-04070100903 10 10 pcs. Price on request
MDA 36/42 E03DK-04070101003 1 1 pcs. Price on request
MDA 36/48 E03DK-04070101103 1 1 pcs. Price on request
MDA 42/48 E03DK-04070101203 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material nickel-plated brass
Name Reduction, PG1/PG2 D E L For spanner A
MDA 7/9 PG7 / PG9 9,8 4 7,5 17
MDA 9/11 PG9 / PG11 12,0 5 8,5 20
MDA 9/13 PG9 / PG13,5 12,0 5 8,5 22
MDA 11/13 PG11 / PG13,5 14,5 6 8,5 22
MDA 11/16 PG11 / PG16 14,5 6 8,5 24
MDA 13/16 PG13,5 / PG16 16,8 6 8,5 24
MDA 16/21 PG16 / PG21 18,5 6 10,0 30
MDA 21/29 PG21 / PG29 23,9 7 11,5 40
MDA 29/36 PG29 / PG36 32,8 8 11,5 50
MDA 36/42 PG36 / PG42 40,9 8 15,0 58
MDA 36/48 PG36 / PG48 40,9 8 15,0 64
MDA 42/48 PG42 / PG48 49,6 8 15,0 64

Guide

Adapter, MDA...PG/PG type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Adapter_typu_MDA_PG_PG_EN.pdf EN 14-07-2025 199.39 KB PDF Download
Catalog card ERGOM_Adapter_typu_MDA_PG_PG_PL.pdf PL 14-07-2025 238.71 KB PDF Download
