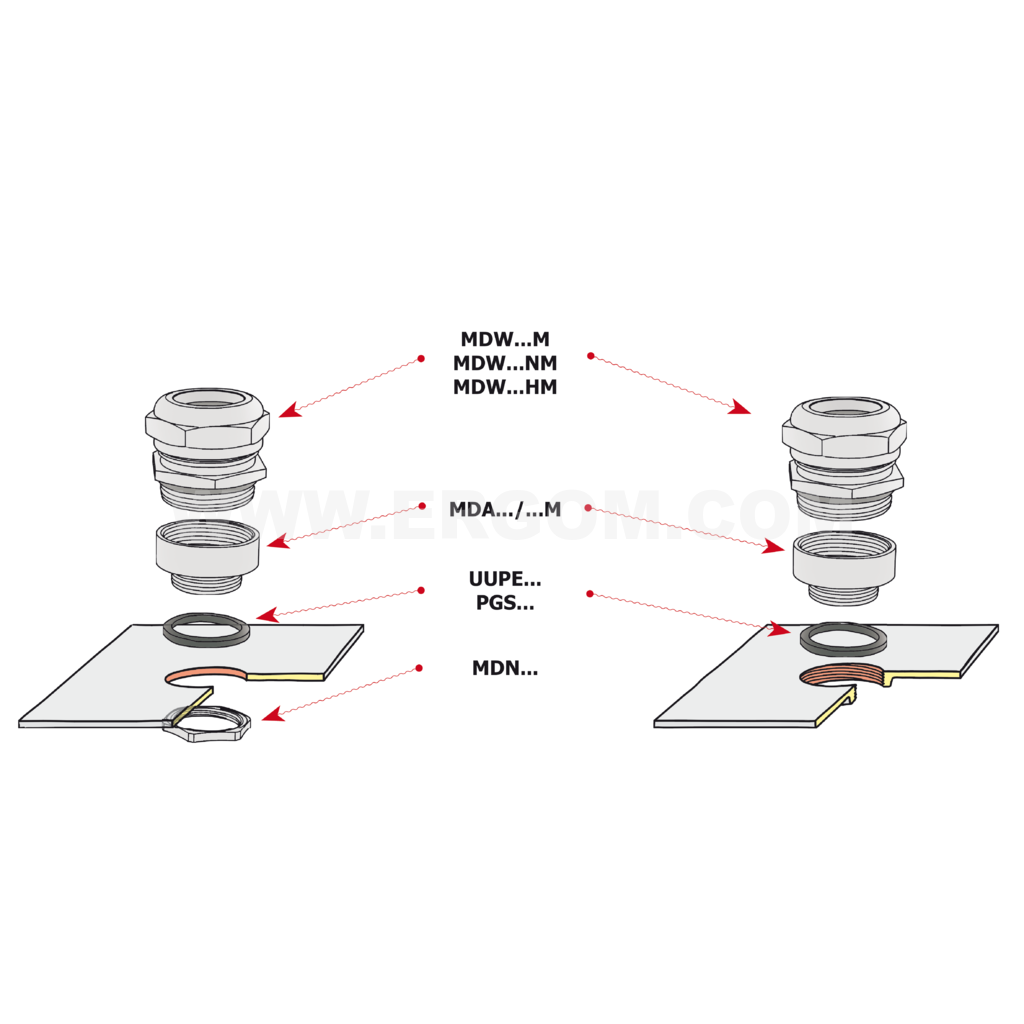

Adapter, MDA...PG/M type

Adapter, MDA...PG/M type

Main data of the product series

Product name
Adapter, MDA...PG/M type
Category
Metal accessories
Material
nickel-plated brass
Note!
Nuts and adapter seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDA 7/12M E03DK-04070400103 10 10 pcs. Price on request
MDA 7/16M E03DK-04070400203 10 10 pcs. Price on request
MDA 9/16M E03DK-04070400303 10 10 pcs. Price on request
MDA 9/20M E03DK-04070400403 10 10 pcs. Price on request
MDA 11/16M E03DK-04070400503 10 10 pcs. Price on request
MDA 11/20M E03DK-04070400603 10 10 pcs. Price on request
MDA 13/20M E03DK-04070400703 10 10 pcs. Price on request
MDA 13/25M E03DK-04070400803 10 10 pcs. Price on request
MDA 16/20M E03DK-04070400903 10 10 pcs. Price on request
MDA 16/25M E03DK-04070401003 10 10 pcs. Price on request
MDA 21/32M E03DK-04070401103 10 10 pcs. Price on request
MDA 29/40M E03DK-04070401203 10 10 pcs. Price on request
MDA 36/50M E03DK-04070401303 1 1 pcs. Price on request
MDA 42/63M E03DK-04070401403 1 1 pcs. Price on request
MDA 48/63M E03DK-04070401503 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material nickel-plated brass
Name Reduction, PG/M D D1 E L
MDA 7/12M PG7 / M12x1,5 15 9,8 6,5 7,0
MDA 7/16M PG7 / M16x1,5 18 9,8 6,5 8,5
MDA 9/16M PG9 / M16x1,5 18 12,0 6,5 8,5
MDA 9/20M PG9 / M20x1,5 22 12,0 6,5 8,5
MDA 11/16M PG11 / M16x1,5 21 14,5 7,0 7,5
MDA 11/20M PG11 / M20x1,5 22 15,0 7,0 8,5
MDA 13/20M PG13,5 / M20x1,5 23 16,8 7,0 8,5
MDA 13/25M PG13,5 / M25x1,5 27 16,8 7,0 9,5
MDA 16/20M PG16 / M20x1,5 27 18,5 8,0 7,5
MDA 16/25M PG16 / M25x1,5 27 18,8 8,0 9,5
MDA 21/32M PG21 / M32x1,5 34 24,2 8,0 10,5
MDA 29/40M PG29 / M40x1,5 42 32,8 8,5 10,5
MDA 36/50M PG36 / M50x1,5 53 42,6 8,5 11,0
MDA 42/63M PG42 / M63x1,5 67 49,6 10,0 13,0
MDA 48/63M PG48 / M63x1,5 67 54,5 11,0 13,0

Guide

Adapter, MDA...PG/M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Adapter_typu_MDA_PG_M_EN.pdf EN 14-05-2025 197.79 KB PDF Download
Catalog card ERGOM_Adapter_typu_MDA_PG_M_PL.pdf PL 14-05-2025 238.23 KB PDF Download
