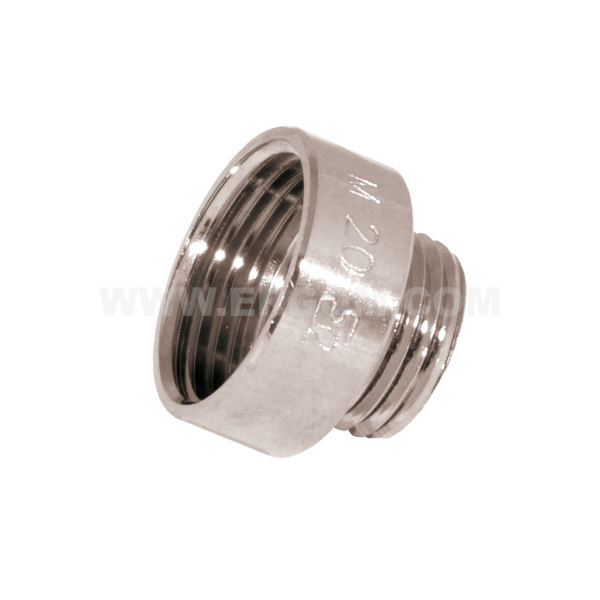

Adapter, MDA...M/PG type

Adapter, MDA...M/PG type

Main data of the product series

Product name: Adapter, MDA...M/PG type
Category: Metal accessories
Material: nickel-plated brass

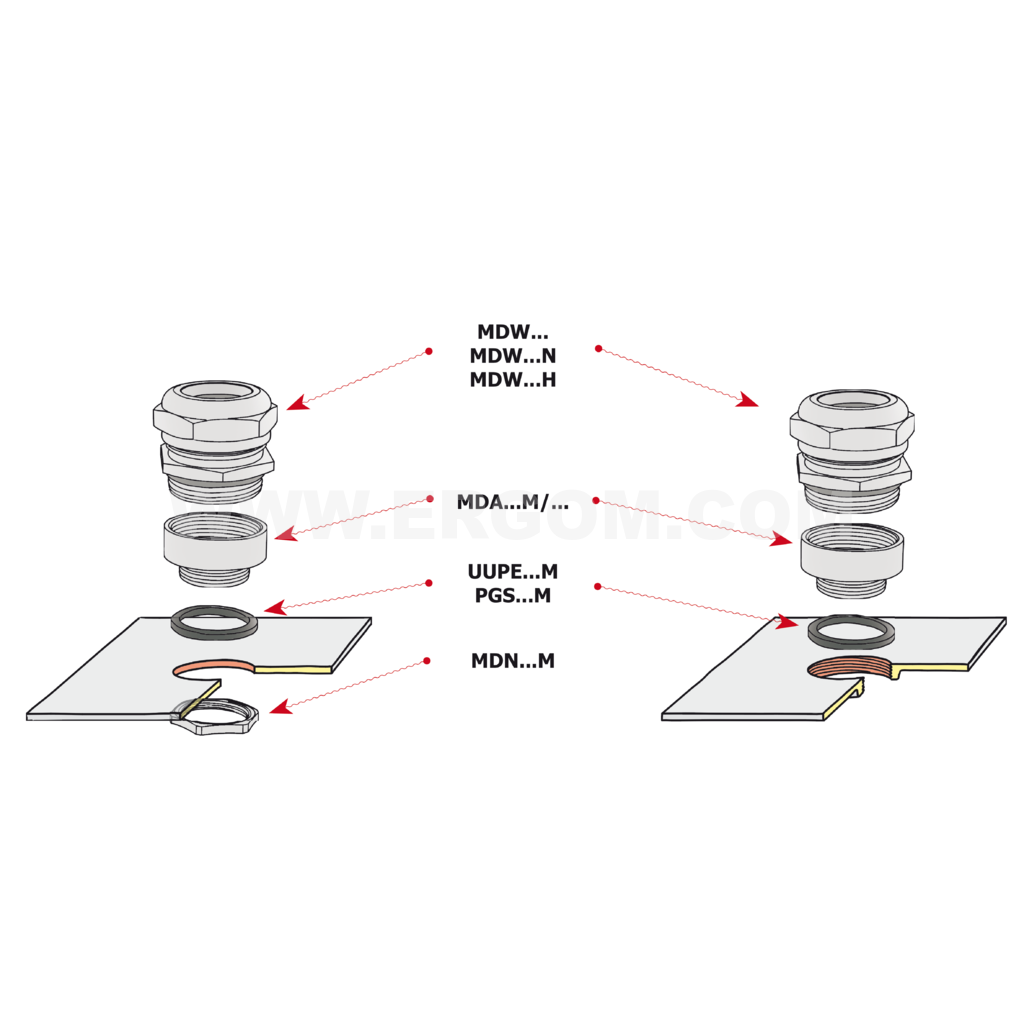

Note!: Nuts and adapter seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MDA 12M/7	E03DK-04070200103	10	10	pcs.	Price on request
MDA 12M/9	E03DK-04070200203	10	10	pcs.	Price on request
MDA 16M/9	E03DK-04070200303	10	10	pcs.	Price on request
MDA 16M/11	E03DK-04070200403	10	10	pcs.	Price on request
MDA 20M/11	E03DK-04070200503	10	10	pcs.	Price on request
MDA 20M/13	E03DK-04070200603	10	10	pcs.	Price on request
MDA 20M/16	E03DK-04070200703	10	10	pcs.	Price on request
MDA 25M/16	E03DK-04070200803	10	10	pcs.	Price on request
MDA 25M/21	E03DK-04070200903	10	10	pcs.	Price on request
MDA 32M/29	E03DK-04070201003	10	10	pcs.	Price on request
MDA 40M/29	E03DK-04070201103	10	10	pcs.	Price on request
MDA 40M/36	E03DK-04070201203	10	10	pcs.	Price on request
MDA 50M/36	E03DK-04070201303	1	1	pcs.	Price on request
MDA 50M/42	E03DK-04070201403	1	1	pcs.	Price on request
MDA 63M/48	E03DK-04070201503	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	nickel-plated brass

Name	Reduction, M/PG	D	D1	E	L
MDA 12M/7	M12x1,5 / PG7	14	8,8	5	8,5
MDA 12M/9	M12x1,5 / PG9	17	8,8	5	8,5
MDA 16M/9	M16x1,5 / PG9	18	12,5	6	8,5
MDA 16M/11	M16x1,5 / PG11	20	12,5	6	9,2
MDA 20M/11	M20x1,5 / PG11	23	16,2	6	9,2
MDA 20M/13	M20x1,5 / PG13,5	23	16,2	6	9,2
MDA 20M/16	M20x1,5 / PG16	25	16,2	6	10,5
MDA 25M/16	M25x1,5 / PG16	28	21,2	7	9,5
MDA 25M/21	M25x1,5 / PG21	32	21,0	7	10,5
MDA 32M/29	M32x1,5 / PG29	39	27,8	8	11,2
MDA 40M/29	M40x1,5 / PG29	44	37,8	8	10,0
MDA 40M/36	M40x1,5 / PG36	49	35,8	8	11,2
MDA 50M/36	M50x1,5 / PG36	54	45,5	9	10,0
MDA 50M/42	M50x1,5 / PG42	56	46,1	9	12,7
MDA 63M/48	M63x1,5 / PG48	67	57,8	10	12,5
