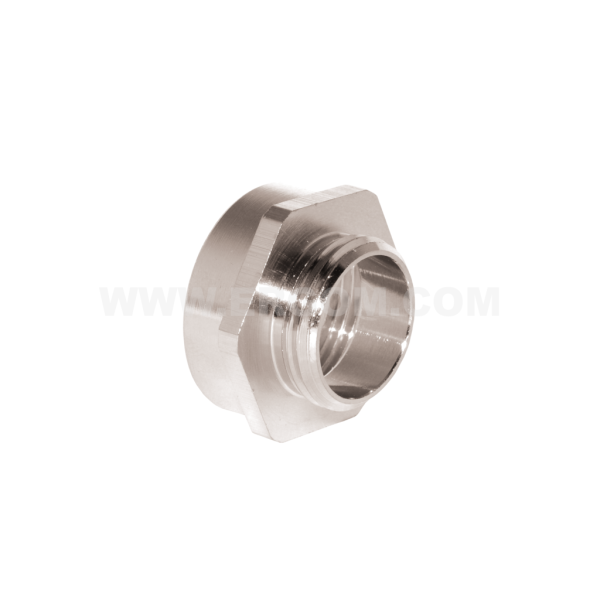

Adapter, MDA...M/M type

Adapter, MDA...M/M type

Main data of the product series

Product name
Adapter, MDA...M/M type
Category
Metal accessories
Material
nickel-plated brass
Note!
Nuts and adapter seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDA 12M/16M E03DK-04070300103 10 10 pcs. Price on request
MDA 16M/20M E03DK-04070300203 10 10 pcs. Price on request
MDA 20M/25M E03DK-04070300303 10 10 pcs. Price on request
MDA 25M/32M E03DK-04070300403 10 10 pcs. Price on request
MDA 32M/40M E03DK-04070300503 10 10 pcs. Price on request
MDA 40M/50M E03DK-04070300603 1 1 pcs. Price on request
MDA 50M/63M E03DK-04070300703 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material nickel-plated brass
Name Reduction, M1/M2 D E L For spanner A
MDA 12M/16M M12x1,5 / M16x1,5 8,8 5 8,0 18
MDA 16M/20M M16x1,5 / M20x1,5 12,5 6 8,0 22
MDA 20M/25M M20x1,5 / M25x1,5 16,2 6 9,0 27
MDA 25M/32M M25x1,5 / M32x1,5 21,0 7 10,5 36
MDA 32M/40M M32x1,5 / M40x1,5 27,8 8 10,5 42
MDA 40M/50M M40x1,5 / M50x1,5 35,8 8 11,5 52
MDA 50M/63M M50x1,5 / M63x1,5 45,8 9 12,5 67

Guide

Adapter, MDA...M/M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Adapter_typu_MDA_M_M_EN.pdf EN 14-05-2025 193.11 KB PDF Download
Catalog card ERGOM_Adapter_typu_MDA_M_M_PL.pdf PL 14-05-2025 233.44 KB PDF Download
