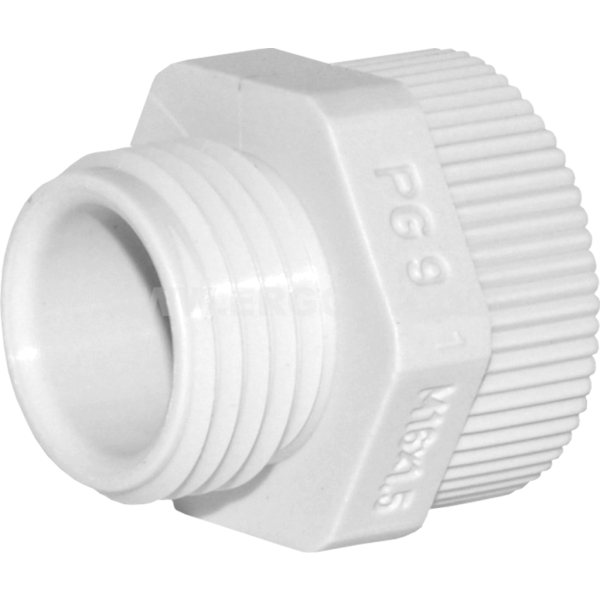

Adapter, DA...PG/M type

Adapter, DA...PG/M type

Main data of the product series

Product name
Adapter, DA...PG/M type
Category
Plastic accessories
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035)
Material
polyamide 6
Note!
Nuts and seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DA 7/12M E03DK-02130400103 10 10 pcs. Price on request
DA 7/16M E03DK-02130400203 10 10 pcs. Price on request
DA 9/12M E03DK-02130400303 10 10 pcs. Price on request
DA 9/16M E03DK-02130400403 10 10 pcs. Price on request
DA 9/20M E03DK-02130400503 10 10 pcs. Price on request
DA 11/16M E03DK-02130400603 10 10 pcs. Price on request
DA 11/20M E03DK-02130400703 10 10 pcs. Price on request
DA 13/16M E03DK-02130400803 10 10 pcs. Price on request
DA 13/20M E03DK-02130400903 10 10 pcs. Price on request
DA 13/25M E03DK-02130401003 10 10 pcs. Price on request
DA 16/20M E03DK-02130401103 10 10 pcs. Price on request
DA 16/25M E03DK-02130401203 10 10 pcs. Price on request
DA 21/25M E03DK-02130401303 10 10 pcs. Price on request
DA 21/32M E03DK-02130401403 10 10 pcs. Price on request
DA 29/32M E03DK-02130401503 10 10 pcs. Price on request
DA 29/40M E03DK-02130401603 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Colour grey (RAL 7035)
Operating temperature [°C] -30 ÷ +80
Name Reduction, PG/M E L For spanner A
DA 7/12M PG7 / M12x1,5 8 12,0 15
DA 7/16M PG7 / M16x1,5 8 12,0 20
DA 9/12M PG9 / M12x1,5 8 12,0 19
DA 9/16M PG9 / M16x1,5 8 12,0 20
DA 9/20M PG9 / M20x1,5 8 12,0 24
DA 11/16M PG11 / M16x1,5 8 12,0 22
DA 11/20M PG11 / M20x1,5 8 12,0 24
DA 13/16M PG13,5 / M16x1,5 9 12,0 24
DA 13/20M PG13,5 / M20x1,5 9 12,5 24
DA 13/25M PG13,5 / M25x1,5 9 12,0 30
DA 16/20M PG16 / M20x1,5 10 12,5 27
DA 16/25M PG16 / M25x1,5 10 12,5 30
DA 21/25M PG21 / M25x1,5 11 12,5 33
DA 21/32M PG21 / M32x1,5 11 14,5 37
DA 29/32M PG29 / M32x1,5 11 14,5 42
DA 29/40M PG29 / M40x1,5 11 14,5 45

Guide

Adapter, DA...PG/M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Adapter_DA_PG_M_EN.pdf EN 14-05-2025 206.67 KB PDF Download
Catalog card ERGOM_Adapter_DA_PG_M_PL.pdf PL 14-05-2025 258.53 KB PDF Download
