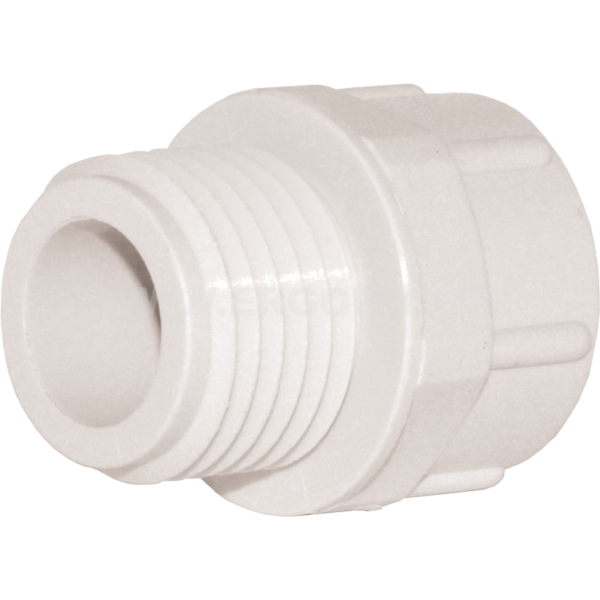

Adapter, DA...M/PG type

Adapter, DA...M/PG type

Main data of the product series

Product name
Adapter, DA...M/PG type
Category
Plastic accessories
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035)
Material
polyamide 6
Note!
Nuts and seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DA 12M/7 E03DK-02130300103 10 10 pcs. Price on request
DA 12M/9 E03DK-02130300203 10 10 pcs. Price on request
DA 16M/9 E03DK-02130300303 10 10 pcs. Price on request
DA 20M/11 E03DK-02130300403 10 10 pcs. Price on request
DA 20M/13 E03DK-02130300503 10 10 pcs. Price on request
DA 20M/16 E03DK-02130300603 10 10 pcs. Price on request
DA 25M/16 E03DK-02130300703 10 10 pcs. Price on request
DA 25M/21 E03DK-02130300803 10 10 pcs. Price on request
DA 32M/21 E03DK-02130300901 10 10 pcs. Price on request
DA 32M/29 E03DK-02130301001 10 10 pcs. Price on request
DA 40M/29 E03DK-02130301101 10 10 pcs. Price on request
DA 50M/36 E03DK-02130301203 1 1 pcs. Price on request
DA 50M/42 E03DK-02130301303 1 1 pcs. Price on request
DA 63M/48 E03DK-02130301403 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Colour grey (RAL 7035)
Operating temperature [°C] -30 ÷ +80
Name Reduction, M/PG E L For spanner A
DA 12M/7 M12 / PG7 8 13,0 15
DA 12M/9 M12 / PG9 8 12,5 19
DA 16M/9 M16 / PG9 11 13,5 19
DA 20M/11 M20 / PG11 11 15,5 22
DA 20M/13 M20 / PG13,5 11 14,0 24
DA 20M/16 M20 / PG16 11 17,0 27
DA 25M/16 M25 / PG16 11 18,0 27
DA 25M/21 M25 / PG21 11 20,0 32
DA 32M/21 M32 / PG21 10 21,0 36
DA 32M/29 M32 / PG29 11 22,0 42
DA 40M/29 M40 / PG29 11 23,0 42
DA 50M/36 M50 / PG36 11 26,0 53
DA 50M/42 M50 / PG42 11 28,0 60
DA 63M/48 M63 / PG48 11 29,0 65

Guide

Adapter, DA...M/PG type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Adapter_DA_M_PG_EN.pdf EN 14-05-2025 203.45 KB PDF Download
Catalog card ERGOM_Adapter_DA_M_PG_PL.pdf PL 14-05-2025 254.21 KB PDF Download
