Adapter, DA, DA...M/M type

Adapter, DA, DA...M/M type

Main data of the product series

Product name
Adapter, DA, DA...M/M type
Category
Plastic accessories
Material
polyamide 6
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035)
Note!
Nuts and seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DA 7/9 E03DK-02130100103 10 10 pcs. Price on request
DA 9/11 E03DK-02130100203 10 10 pcs. Price on request
DA 11/13 E03DK-02130100303 10 10 pcs. Price on request
DA 13/16 E03DK-02130100403 10 10 pcs. Price on request
DA 16/21 E03DK-02130100503 10 10 pcs. Price on request
DA 21/29 E03DK-02130100603 10 10 pcs. Price on request
DA 29/36 E03DK-02130100703 10 10 pcs. Price on request
DA 12M/16M E03DK-02130200103 10 10 pcs. Price on request
DA 16M/20M E03DK-02130200203 10 10 pcs. Price on request
DA 20M/25M E03DK-02130200303 10 10 pcs. Price on request
DA 25M/32M E03DK-02130200403 10 10 pcs. Price on request
DA 32M/40M E03DK-02130200501 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Colour grey (RAL 7035)
Operating temperature [°C] -30 ÷ +80
Name Reduction, M1/M2 Reduction, PG1/PG2 E L For spanner A
DA 7/9 - PG7 / PG9 6,5 11,5 19
DA 9/11 - PG9 / PG11 7,0 12,0 22
DA 11/13 - PG11 / PG13,5 8,0 13,0 24
DA 13/16 - PG13,5 / PG16 9,0 13,5 27
DA 16/21 - PG16 / PG21 9,0 16,5 32
DA 21/29 - PG21 / PG29 10,0 20,0 41
DA 29/36 - PG29 / PG36 12,0 21,0 55
DA 12M/16M M12x1,5 / M16x1,5 - 8,0 12,5 20
DA 16M/20M M16x1,5 / M20x1,5 - 8,0 13,0 24
DA 20M/25M M20x1,5 / M25x1,5 - 8,0 13,0 30
DA 25M/32M M25x1,5 / M32x1,5 - 8,0 15,0 36
DA 32M/40M M32x1,5 / M40x1,5 - 11,0 15,0 45

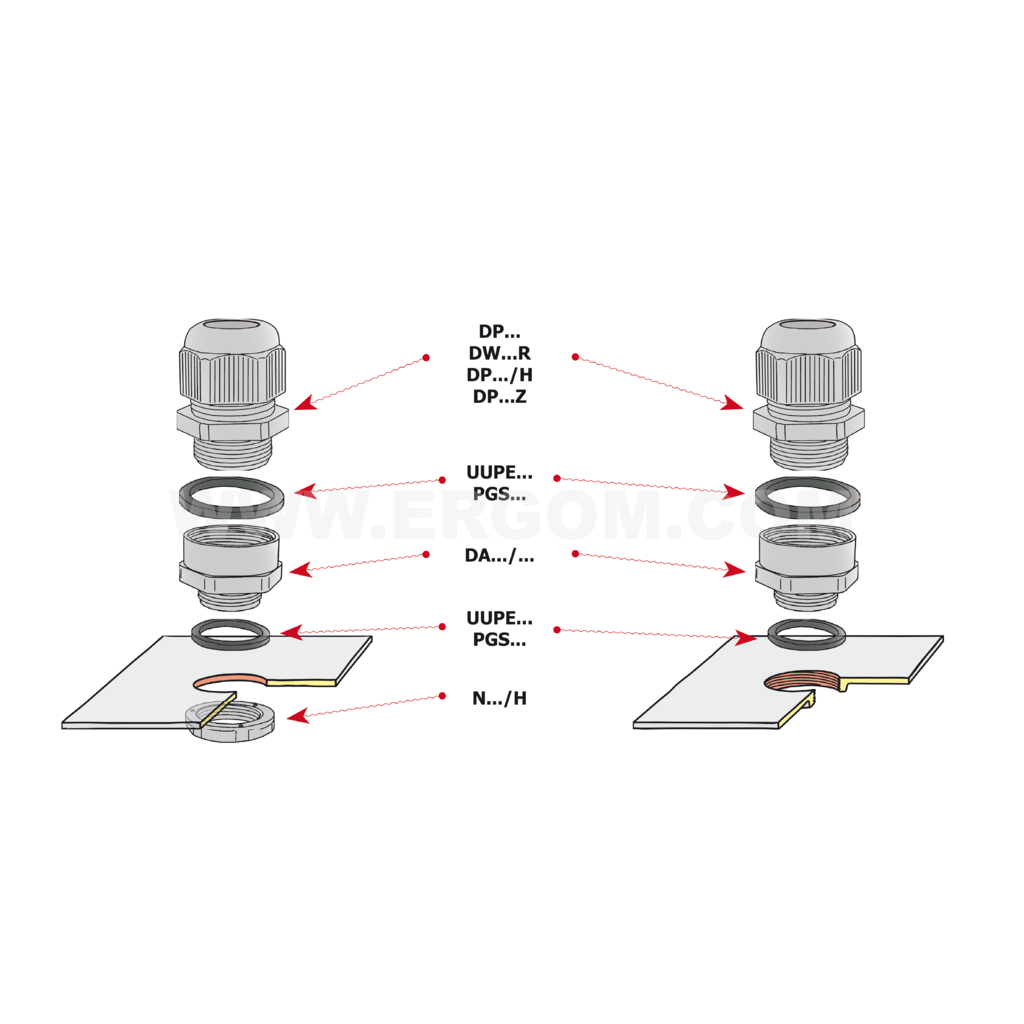

Guide

Adapter, DA, DA...M/M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Adapter_typu_DA_DA_M_M_EN.pdf EN 14-05-2025 207.54 KB PDF Download
Catalog card ERGOM_Adapter_typu_DA_DA_M_M_PL.pdf PL 14-05-2025 259.39 KB PDF Download
