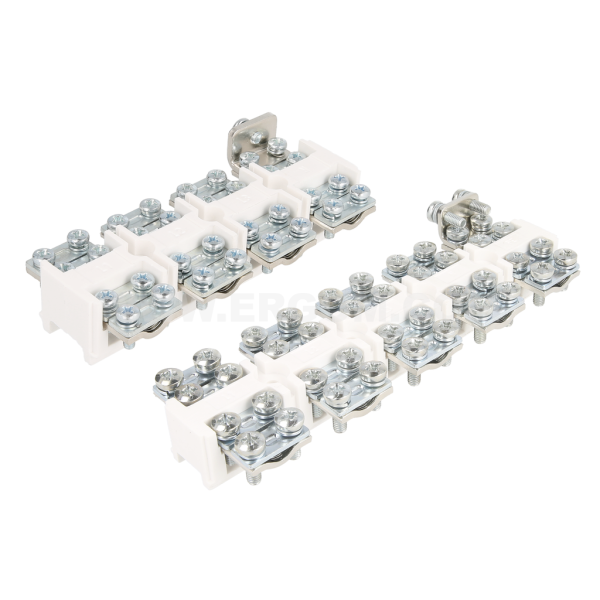

4- and 5-circuit screw connectors for 6÷95 mm² wires

4- and 5-circuit screw connectors for 6÷95 mm² wires

Main data of the product series

Product name
4- and 5-circuit screw connectors for 6÷95 mm² wires
Category
Multi-circuit connectors
Standards
EN 60947-7-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LZG4-35 R35RW-01030200101 1 1 pcs. Price on request
LZG4-95 R35RW-01030200201 1 1 pcs. Price on request
LZG5-35 R35RW-01030300101 1 1 pcs. Price on request
LZG5-95 R35RW-01030300201 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Insulation voltage [V] 500
Colour white
Insulation material termosetting material
Screw material galvanized steel
Connector material brass - SN6 covering
Ambient temperature [°C] -25 ÷ +55
Circuit insulation length [mm] 23
Normy EN 60947-7-1
Name Constant current [A] Nominal cross-section [mm²] Wire cross-section (cord) [mm²] Number of tracks Recommended tightening torque [Nm] L1 L2 L3 S
LZG4-35 125/101 35/25 16÷35 / 6÷25 4 2,5 128 55 32 4,3
LZG4-95 232/192 95/70 16÷95 / 10÷70 4 6,0 180 71 45 5,7
LZG5-35 125/101 35/25 16÷35 / 6÷25 5 2,5 160 55 32 4,3
LZG5-95 232/192 95/70 16÷95 / 10÷70 5 6,0 225 71 45 5,7

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczki_gwintowe_4-_i_5-cio_torowe_do_przewodow__6_95_mm2_EN.pdf EN 15-05-2025 356.27 KB PDF Download
Catalog card ERGOM_Zlaczki_gwintowe_4-_i_5-cio_torowe_do_przewodow__6_95_mm2_PL.pdf PL 15-05-2025 368.77 KB PDF Download
