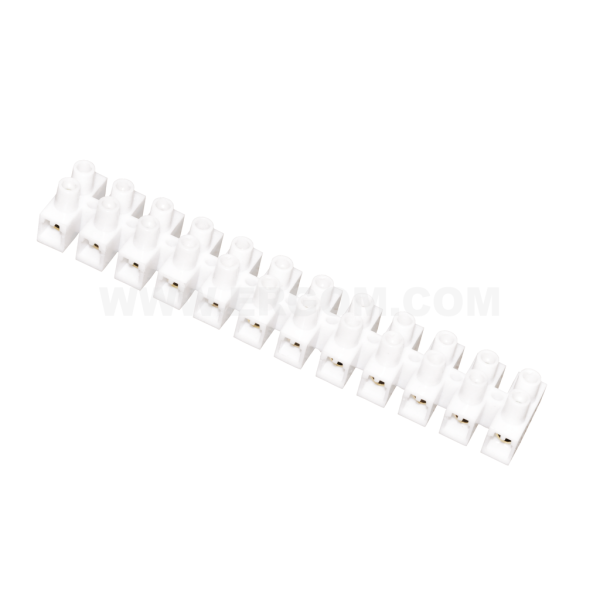

12-circuit screw connectors for 6 mm² wires, ELP 12

12-circuit screw connectors for 6 mm² wires, ELP 12

Main data of the product series

Product name
12-circuit screw connectors for 6 mm² wires, ELP 12
Category
Multi-circuit connectors

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ELP-2,5 R35RW-02020100101 10 1 pcs. Price on request
ELP-4 R35RW-02020100201 10 1 pcs. Price on request
ELP-6 R35RW-02020100301 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Insulation voltage [V] 400
Colour white
Insulation material polyethylene
Screw material galvanized steel
Connector material brass
Ambient temperature [°C] -25 ÷ +55
Name Circuit insulation length [mm] Constant current [A] Nominal cross-section [mm²] Wire cross-section (cord) [mm²] Recommended tightening torque [Nm] Circuit insulation length [mm] AxBxC DxE FxGxØH
ELP-2,5 5 19 2,5 0,5÷2,5 0,4 5 93 x 17 x 5,3 7,8 x 13,2 5,6 x 7,8 x 2,9
ELP-4 5,5 25 - 0,5÷4 0,5 5,5 116 x 18,8 x 6,4 9,7 x 15,2 7,8 x 9,9 x 3,1
ELP-6 6 32 6 0,5÷6 0,8 6 129 x 21/20,8 x 7,5 10,3 x 16,2 8,5 x 11,2 x3,9

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczki_gwintowe_ELP_12_torowe_do_przewodow_do_6_mm2_EN.pdf EN 15-05-2025 202.96 KB PDF Download
Catalog card ERGOM_Zlaczki_gwintowe_ELP_12_torowe_do_przewodow_do_6_mm2_PL.pdf PL 15-05-2025 219.69 KB PDF Download
