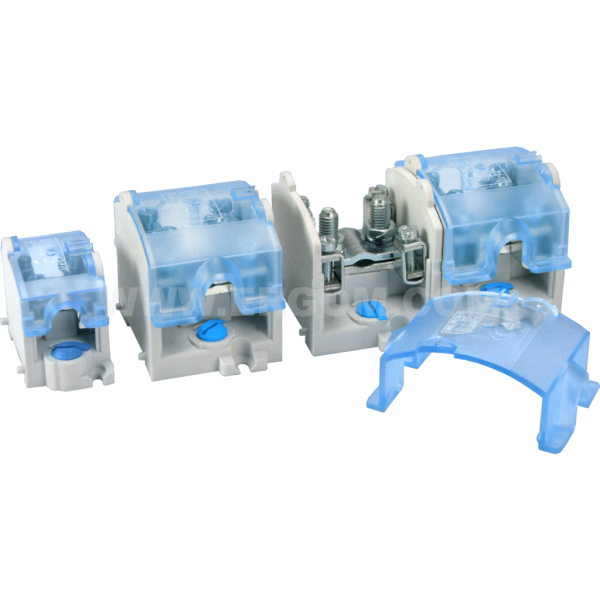

1-line Installation branches, OBL...-1 type

1-line Installation branches, OBL...-1 type

Main data of the product series

Product name
1-line Installation branches, OBL...-1 type
Category
Multi-circuit connectors
Ambient temperature [°C]
-25 ÷ +100
Standards
EN 60998-2-1 EN 60947-7-1 Safety sign “B”

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
OBL 25/10-1 R35RW-01040000103 10 10 pcs. Price on request
OBL 25/16-1 R35RW-01040000203 10 10 pcs. Price on request
OBL 35/25-1 R35RW-01040000303 10 10 pcs. Price on request
OBL 70/25-1 R35RW-01040000403 10 10 pcs. Price on request
OBL 95/35-1 R35RW-01040000503 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Insulation voltage [V] 750
Body colour grey
Cover colour blue
Body material polyamide
Cover material transparent polycarbonate
Clamp material steel - Zn5 covering
Current circuit material brass - SN6 covering
Ambient temperature [°C] -25 ÷ +100
Normy EN 60998-2-1 EN 60947-7-1 Safety sign “B”
Name Nominal cross-section of main circuit [mm2] Wire cross-section (wire / main line circuit cord) [mm²] Main circuit continuous current [A] Main circuit insulation length [mm] Nominal cross-section of branch circuit [mm2] Wire cross-section (wire / branch circuit cord) [mm²] Secondary circuit continuous current [A] Branch circuit insulation length [mm] Max. tightening torque [Nm] (1) / (2) S W D
OBL 25/10-1 25 25/16 101 20 10 10/6 57 15 2,0/1,2 59 48 33
OBL 25/16-1 25 25/16 101 21 16 16/10 76 17 2,0/2,0 64 58 38
OBL 35/25-1 35 35/25 125 27 25 25/6 101 17 2,0/2,0 64 58 58
OBL 70/25-1 70 70/50 192 27 25 25/16 101 18 6,0/2,0 77 62 53
OBL 95/35-1 95 95/70 232 27 35 35/35 125 18 6,0/2,0 77 62 53

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Odgalezniki_instalacyjne_OBL_jednotorowe_EN.pdf EN 15-05-2025 264.58 KB PDF Download
Catalog card ERGOM_Odgalezniki_instalacyjne_OBL_jednotorowe_PL.pdf PL 15-05-2025 280.99 KB PDF Download
